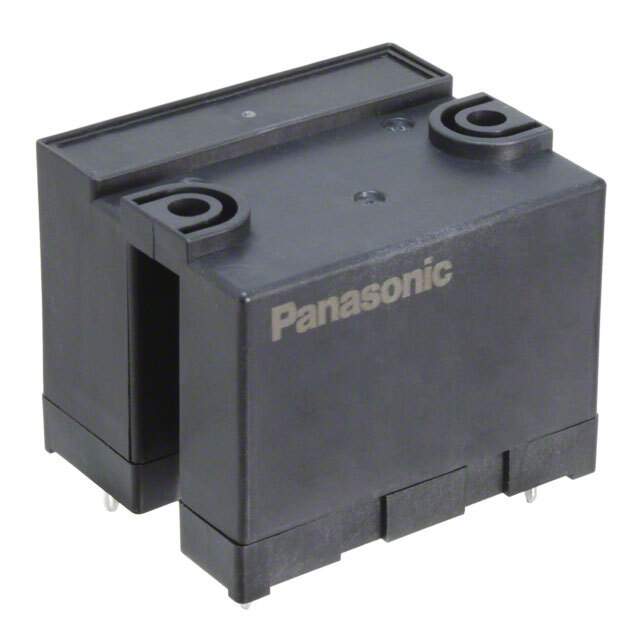

HEV2AN-P-DC12V Real Image
Same model may have multiple batches, images only for reference.

HEV2AN-P-DC12V

Part No HEV2AN-P-DC12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 20A 12V / General Purpose Relay DPST-NO (2 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series HE-V
Package Tray
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form DPST-NO (2 Form A)
Contact Rating (Current) 20 A
Switching Voltage 1000VDC - Max
Coil Current 160 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 8.4 VDC
Must Release Voltage 0.6 VDC
Operate Time 30 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 55°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 75 Ohms
Base Product Number HEV2AN
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1341426-HEV2AN-P-DC12V
Ultra Librarian 3D Model Ultra Librarian HEV2AN-P-DC12V CAD Model

Description

The HEV2AN-P-DC12V is a power relay manufactured by Panasonic Electric Works.

  • Contact Form: DPST-NO (2 Form A)
  • Contact Material: Silver Nickel (AgNi)
  • Switching Voltage: 1000VDC - Max
  • Coil Voltage: 12VDC
  • Coil Resistance: 75 ohms
  • Operating Temperature: -40°C ~ 55°C
  • Must Operate Voltage: 8.4 VDC
  • Must Release Voltage: 0.6 VDC
  • Category: Relays - Power Relays, Over 2 Amps
  • Type: General Purpose
  • Package: Tray
  • Seal Rating: Sealed - Flux Protection
  • Coil Insulation: Class F
  • Base Product Number: HEV2AN
