Same model may have multiple batches, images only for reference.

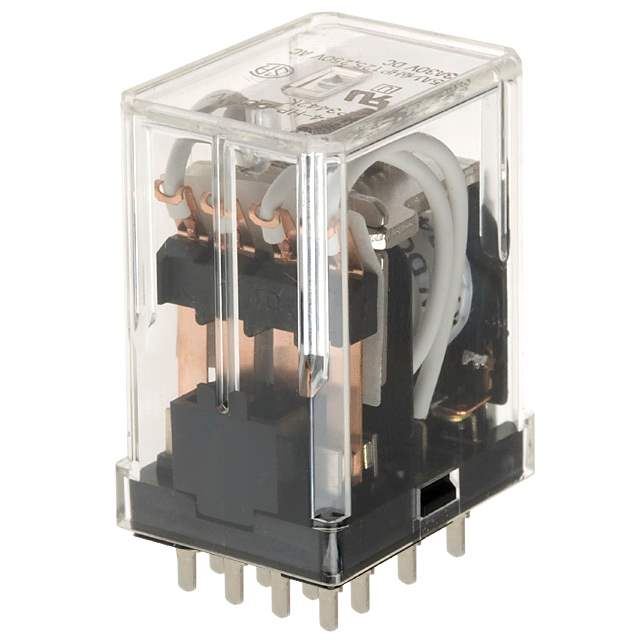

HC1-HP-AC24V-F Real Image
Same model may have multiple batches, images only for reference.

HC1-HP-AC24V-F

Part No HC1-HP-AC24V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 10A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 50mA
Coil Voltage 24VAC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10A
Switching Voltage 250VAC - Max
Turn On Voltage (Max) 19.2 VAC
Turn Off Voltage (Min) 7.2 VAC
Operate Time 20ms
Release Time 20ms
Mounting Through Hole
Termination Style PC Pin
Coil Power 1.2 VA
Temperature Range - Operating -50°C to 70°C
Win Source Part Number 001485-HC1-HP-AC24V-F
Popularity Medium
Supply and Demand Status Limited
Quantity per package 20
Ultra Librarian 3D Model Ultra Librarian HC1-HP-AC24V-F CAD Model

Description

The Panasonic HC1-HP-AC24V-F is a general-purpose relay with SPDT (1 Form C) contact form. It has a coil voltage of 24VAC and a contact rating (current) of 10A. The relay is mounted through hole, and its packaging is bulk. The manufacturer of this component is Panasonic Electric Works, and its Win Source Part Number is 001485-HC1-HP-AC24V-F. The relay's temperature range for operating is -50°C to 70°C, and it comes in a package of 20.
