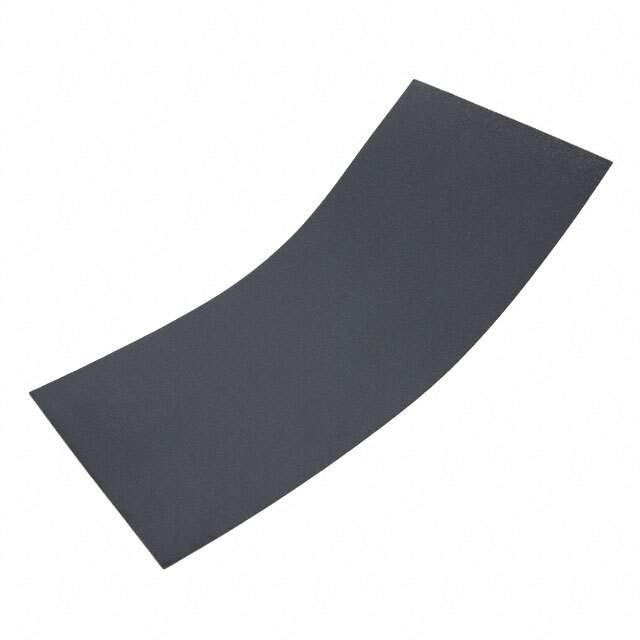

EYG-S121804 Real Image
Same model may have multiple batches, images only for reference.

EYG-S121804

Part No EYG-S121804
Manufacturer Panasonic
Catalog Thermal - Pads, Sheets
Description THERM PAD 180MMX115MM GRAY / Thermal Pad Gray 180.00mm x 115.00mm Rectangular
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>Thermal - Pads, Sheets
Mfr Panasonic Electronic Components
Series PGS
Package Bulk
Product Status Not For New Designs
Usage In-Plane Heat Transfer
Type Graphite-Pad, Sheet
Shape Rectangular
Outline 180.00mm x 115.00mm
Thickness 0.0016" (0.040mm)
Material Graphite
Color Gray
Thermal Conductivity 400W/m-K
Base Product Number EYG-S1218
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8545.90.4000
Other Names P19081,EYGS121804
Standard Package 10
Win Source Part Number 1058122-EYG-S121804
Ultra Librarian 3D Model Ultra Librarian EYG-S121804 CAD Model

Description

The Panasonic Electronic Components' PGS Graphite-Pad, Sheet is a high-performance electronic component designed for in-plane heat transfer usage.

  • Thickness: 0.0016" (0.040mm)
  • Outline: 180.00mm x 115.00mm
  • Thermal Conductivity: 400W/m-K
  • Packaging: Bulk
  • Standard Package: 10
  • Lifecycle: Not for new designs
  • ECCN: EAR99
