Same model may have multiple batches, images only for reference.

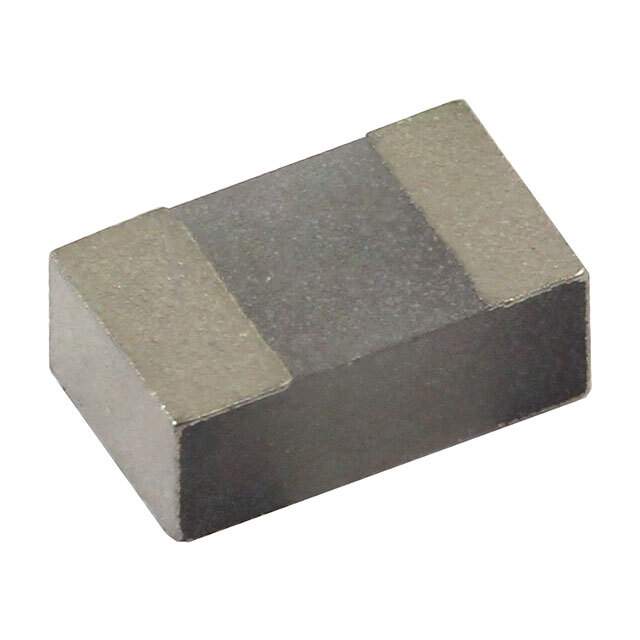

THJP0805AST1 Real Image
Same model may have multiple batches, images only for reference.

THJP0805AST1

Part No THJP0805AST1
Manufacturer Vishay
Catalog Thermal - Pads, Sheets
Description THERMAL JUMPER 0805 30 MIL LEAD- / Thermal Pad 2.01mm x 0.84mm Rectangular
Datasheet
THJP0805AST1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Thermal - Pads, Sheets
Mfr Vishay Dale Thin Film
Series ThermaWick™
Package Tape & Reel
Usage Heat Transfer
Type Thermal Bridge Jumper
Shape Rectangular
Outline 2.01mm x 0.84mm
Thickness 0.0030" (0.076mm)
Material Aluminum Nitride
Thermal Resistivity 13°C/W
Thermal Conductivity 77W/m-K
Storage/Refrigeration Temperature -85°F ~ 302°F (-65°C ~ 150°C)
Base Product Number THJP
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1338803-THJP0805AST1
Ultra Librarian 3D Model Ultra Librarian THJP0805AST1 CAD Model

Description

The ThermaWick™ THJP0805AST1 is a thermal bridge jumper from Vishay Dale Thin Film.

  • Manufacturer: Vishay Dale Thin Film
  • Product: Thermal Bridge Jumper
  • Series: ThermaWick™
  • Packaging: Tape & Reel
  • Standard Package Quantity: 1,000
  • Thickness: 0.0030" (0.076mm)
  • Outline: 2.01mm x 0.84mm
  • Material: Aluminum Nitride
  • Shape: Rectangular
  • Thermal Resistivity: 13°C/W
  • Thermal Conductivity: 77W/m-K
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8533.21.0030
  • Base Product Number: THJP
