Same model may have multiple batches, images only for reference.

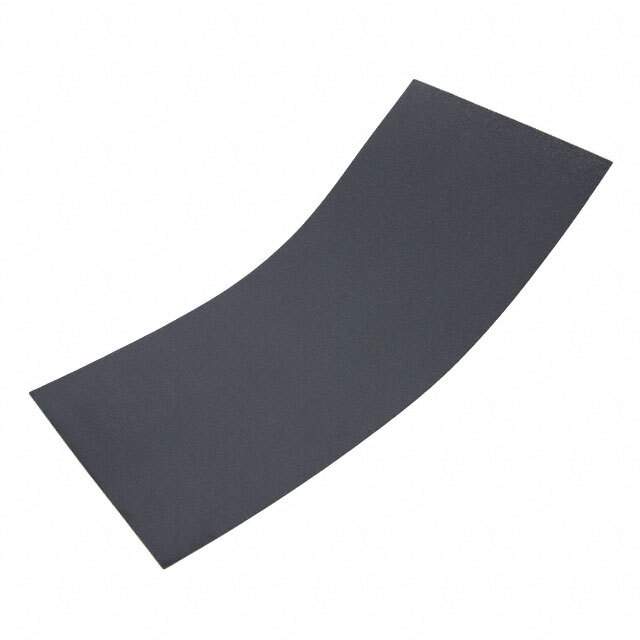

EYG-E0912XD9D Real Image
Same model may have multiple batches, images only for reference.

EYG-E0912XD9D

Part No EYG-E0912XD9D
Manufacturer Panasonic
Catalog Thermal - Pads, Sheets
Description THERM PAD 115MMX90MM W/ADH GRAY / Thermal Pad Gray 115.00mm x 90.00mm Rectangular Adhesive - One Side
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Thermal - Pads, Sheets
Mfr Panasonic Electronic Components
Series SSM
Package Bulk
Product Status Obsolete
Usage Heat Dispersion and Transfer
Type Graphite-Pad, Sheet
Shape Rectangular
Outline 115.00mm x 90.00mm
Thickness 0.118" (3.00mm)
Material Graphite
Adhesive Adhesive - One Side
Backing, Carrier Polyester
Color Gray
Thermal Conductivity 1.6W/m-K
Base Product Number EYG-E0912
Standard Package 10
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 3801.90.0000
Win Source Part Number 1338408-EYG-E0912XD9D
Ultra Librarian 3D Model Ultra Librarian EYG-E0912XD9D CAD Model

Description

The EYG-E0912XD9D is a graphite pad/sheet from Panasonic Electronic Components.

  • Series: SSM
  • Packaging: Bulk
  • Color: Gray
  • Thickness: 0.118 inches
  • Outline: 115.00mm x 90.00mm, Rectangular Shape
  • Function: Heat Dispersion and Transfer
  • Adhesive: One Side
  • Backing/Carrier: Polyester
  • Thermal Conductivity: 1.6W/m-K
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 3801.90.0000
