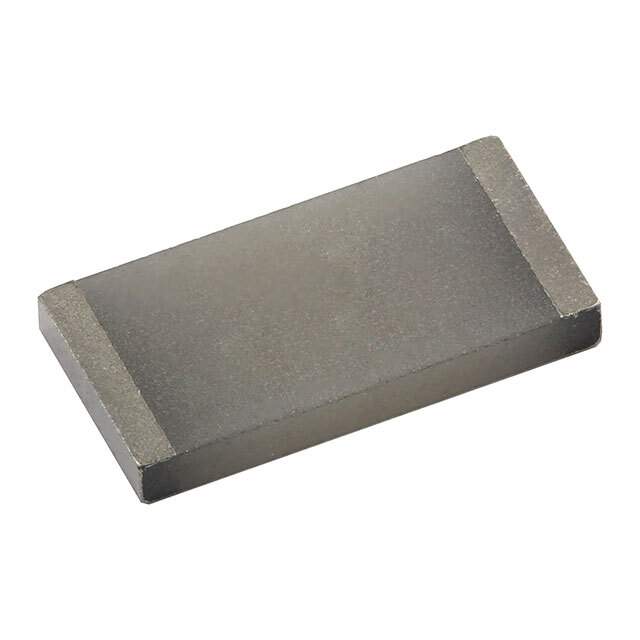

THJP1206ABT1 Real Image
Same model may have multiple batches, images only for reference.

THJP1206ABT1

Part No THJP1206ABT1
Manufacturer Vishay
Catalog Thermal - Pads, Sheets
Description THERMAL JUMPER 1206 30 MIL LEAD / Thermal Pad 3.20mm x 1.60mm Rectangular
Datasheet
THJP1206ABT1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Thermal - Pads, Sheets
Mfr Vishay Dale Thin Film
Series ThermaWick™
Package Tape & Reel
Usage Heat Transfer
Type Thermal Bridge Jumper
Shape Rectangular
Outline 3.20mm x 1.60mm
Thickness 0.0030" (0.076mm)
Material Aluminum Nitride
Thermal Resistivity 15°C/W
Thermal Conductivity 65W/m-K
Storage/Refrigeration Temperature -85°F ~ 302°F (-65°C ~ 150°C)
Base Product Number THJP
Standard Package 1,000
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1338252-THJP1206ABT1
Ultra Librarian 3D Model Ultra Librarian THJP1206ABT1 CAD Model

Description

The Vishay Dale Thin Film THJP1206ABT1 is a thermal bridge jumper with a thermal resistivity of 15°C/W and a thermal conductivity of 65W/m-K.

  • Type: Thermal Bridge Jumper
  • Thermal Resistivity: 15°C/W
  • Thermal Conductivity: 65W/m-K
  • Series: ThermaWick™
  • Shape: Rectangular
  • Outline Dimensions: 3.20mm x 1.60mm
  • RoHS Compliance: Non-Compliant
  • ECCN: EAR99
  • Win Source Part Number: 1338252-THJP1206ABT1
