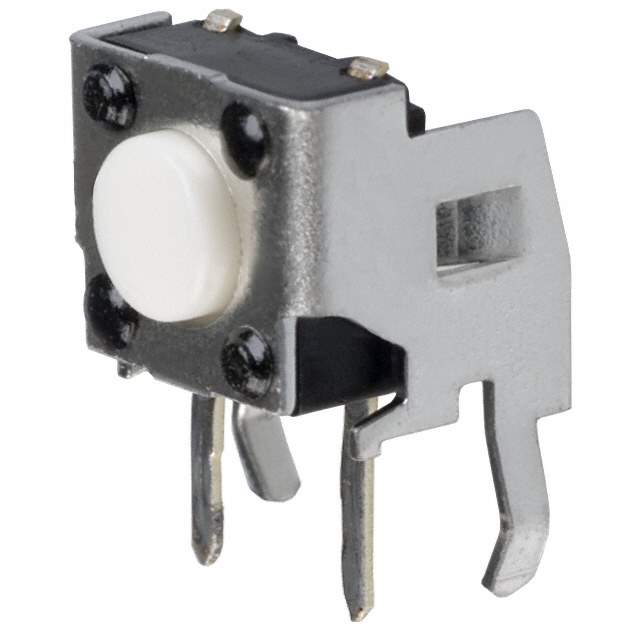

EVQ-PF003M

Name: EVQ-PF003M
Brand: Panasonic
SKU: 1121768
Availability: InStock
Rating: 4.84 (59 reviews)

Get a Quote

Part No	EVQ-PF003M
Manufacturer	Panasonic
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.02A 15V / Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
Datasheet	EVQ-PF003M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>Tactile Switches
Mfr	Panasonic Electronic Components
Series	EVQPF
Package	Bulk
Product Status	Obsolete
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.02A @ 15VDC
Actuator Type	Standard
Mounting Type	Through Hole, Right Angle
Actuator Length, Right Angle	3.15mm
Actuator Orientation	Side Actuated
Termination Style	PC Pin
Outline	7.50mm x 7.10mm
Illumination	Non-Illuminated
Operating Force	100gf
Temperature Range - Operating	-20°C ~ 70°C
Switch Travel	0.25mm
Mechanical Life	100,000 Cycles
Base Product Number	EVQ-PF
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.50.9031
Other Names	Q3400997,EVQPF003M,P10877S,P10877S-NDR
Standard Package	500
Win Source Part Number	1121768-EVQ-PF003M
Ultra Librarian 3D Model	Ultra Librarian EVQ-PF003M CAD Model

Description

The Panasonic EVQ-PF003M is a tactile switch that is part of the EVQPF series.

Circuit Configuration: SPST-NO
Switch Function: Off-Mom
Standard Package: 500
Mounting Type: Through-Hole, Right Angle
Mechanical Life: 100,000 cycles
Operating Force: 100gf
Contact Rating: 0.02A @ 15VDC
Switch Travel: 0.25mm
Actuator Type: Standard
Illumination: Non-Illuminated
Temperature Range: -20°C to 70°C
Package: Bulk
Product Status: Obsolete
