Same model may have multiple batches, images only for reference.

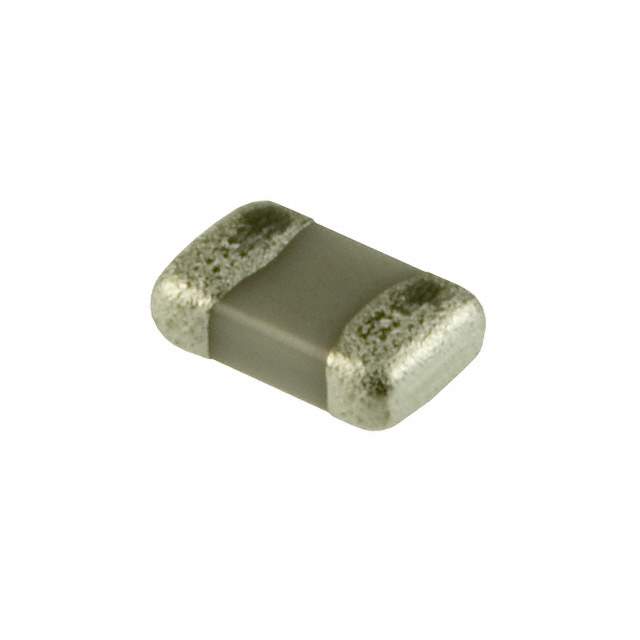

ECJ-2VB1C224K Real Image
Same model may have multiple batches, images only for reference.

ECJ-2VB1C224K

Part No ECJ-2VB1C224K
Manufacturer Panasonic
Catalog Ceramic Capacitors
Description CAP CER 0.22UF 16V X7R 0805 / Cap Ceramic 0.22uF 16V X7R 10% Pad SMD 0805 125°C T/R
Datasheet
ECJ-2VB1C224K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Series ECJ
Packaging Reel package
Part Status Obsolete(EOL)
Capacitance 0.22μF
Tolerance ±10%
Voltage Rating DC 16V
Temperature Coefficient X7R
Operating Temperature Range -55°C ~ 125°C
Applications General
Mounting Surface Mount, MLCC
Package 0805
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Thickness (Maximum) 0.037" (0.95mm)
Win Source Part Number 773646-ECJ-2VB1C224K
Popularity Medium
Supply and Demand Status Limited
Family Name ECJ
Introduction Date April 14, 2008
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian ECJ-2VB1C224K CAD Model

Description

The Panasonic Electronic Components ECJ Capacitor is a high-quality electronic component that comes in an 0805 package.

  • Package: 0805
  • Capacitance: 0.22μF
  • Voltage Rating DC: 16V
  • Tolerance: ±10%
  • Temperature Coefficient: X7R
  • Status: Obsolete (EOL)
  • Operating Temperature Range: -55°C ~ 125°C
  • Applications: General
  • Popularity: Medium
  • Supply and Demand Status: Limited
