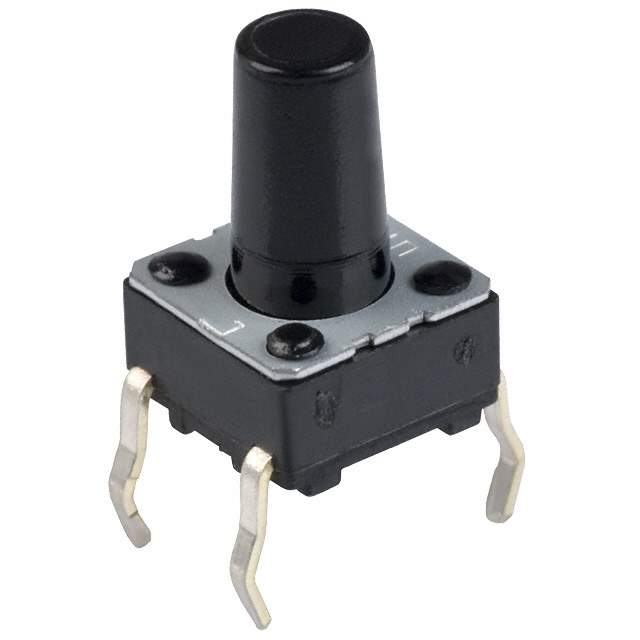

EVQ-PAG09K

Name: EVQ-PAG09K
Brand: Panasonic
SKU: 1340252
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EVQ-PAG09K
Manufacturer	Panasonic
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.02A 15V / Tactile Switch SPST-NO Top Actuated Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - Tactile Switches
Mfr	Panasonic Electronic Components
Series	EVQPA
Package	Bulk
Product Status	Obsolete
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.02A @ 15VDC
Actuator Type	Standard
Mounting Type	Through Hole
Actuator Height off PCB, Vertical	9.50mm
Actuator Orientation	Top Actuated
Termination Style	PC Pin
Outline	6.00mm x 6.00mm
Illumination	Non-Illuminated
Operating Force	260gf
Temperature Range - Operating	-20°C ~ 70°C
Switch Travel	0.25mm
Mechanical Life	50,000 Cycles
Base Product Number	EVQ-PA
Standard Package	500
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.50.9031
Win Source Part Number	1340252-EVQ-PAG09K
Ultra Librarian 3D Model	Ultra Librarian EVQ-PAG09K CAD Model

Description

The Panasonic Electronic Components EVQPA series is a range of tactile switches that are designed for use in a variety of applications.

Circuit: SPST-NO
Switch Function: Off-Mom
Packaging: Tape & Reel (TR)
Standard Package: 500
Actuator Type: Top Actuated
Travel: 0.25mm
Operating Force: 260gf
Mechanical Life: 50,000 Cycles
Mounting Type: Through Hole
Operating Temperature: -20°C to 70°C
