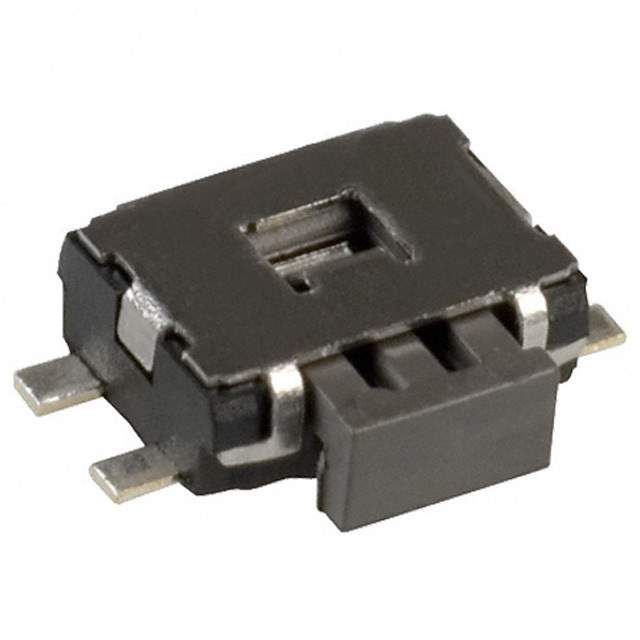

The EVQPUA02K is a tactile switch manufactured by Panasonic. Tactile switches are momentary switches that provide tactile feedback to the user, indicating that the switch has been activated. They are commonly used in a wide range of electronic devices for user input.

Applications

• Consumer electronics (e.g., remote controls, audio/video equipment)
• Industrial equipment
• Automotive electronics
• Medical devices
• Gaming devices
• Computer peripherals (e.g., mice, keyboards)
• Control panels

Features

• Surface Mount Technology (SMT): Designed for automated assembly on printed circuit boards.
• Compact Size: Small footprint for space-constrained applications.
• Tactile Feedback: Provides a distinct click sensation when the switch is pressed.
• High Reliability: Designed for long-term performance.
• Low Profile: Minimal height above the PCB surface.
• RoHS Compliant: Meets environmental regulations.

Benefits

• Easy Integration: Simple to incorporate into electronic designs.
• Durable: Designed for repeated use.
• Consistent Performance: Provides reliable switching action.
• Cost-Effective: Affordable solution for user input.

Additional Details

The EVQPUA02K typically has a specified operating force required to activate the switch, typically in the range of 1.6 N. The operating life, or number of cycles the switch can withstand, is around 50,000 cycles. The switch has a low contact resistance. The operating temperature range is between -25°C and +70°C. The switch is designed for reflow soldering. The packaging is designed for automated pick and place equipment. The switch is typically made of durable plastic and metal materials. It provides a reliable and long-lasting solution for various switching applications.

The EVQPUA02K tactile switch from Panasonic provides a reliable and cost-effective solution for user input in a wide range of electronic devices. Its compact size, tactile feedback, and surface mount design make it a versatile choice for many applications.
