Products specifications

Category Switches>Tactile Switches
Mfr Panasonic Electronic Components
Series EVQPA
Package Bulk
Product Status Obsolete
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Standard
Mounting Type Through Hole
Actuator Height off PCB, Vertical 4.30mm
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 6.00mm x 6.00mm
Illumination Non-Illuminated
Operating Force 160gf
Temperature Range - Operating -20°C ~ 70°C
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Base Product Number EVQ-PA
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Other Names EVQPAE04M,EVQPAEO4M,P8008S-NDR,Q4614199BA,EVQ-PAEO4M,P8008S
Standard Package 500
Win Source Part Number 959361-EVQ-PAE04M
Ultra Librarian 3D Model Ultra Librarian EVQ-PAE04M CAD Model

Description

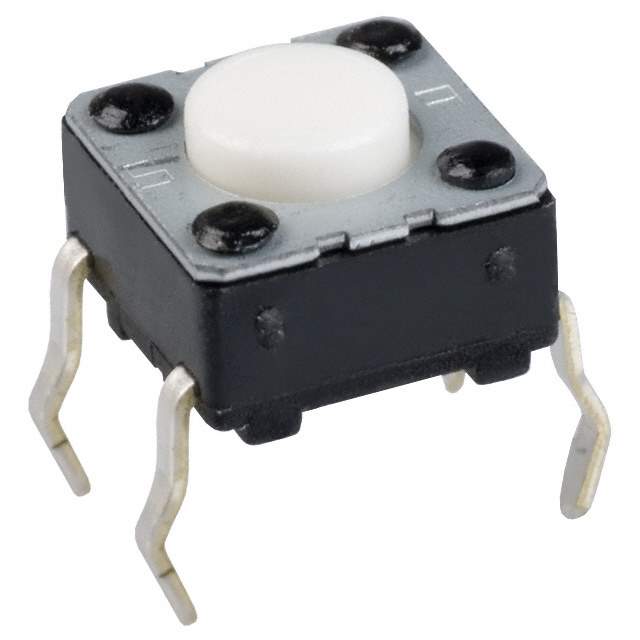

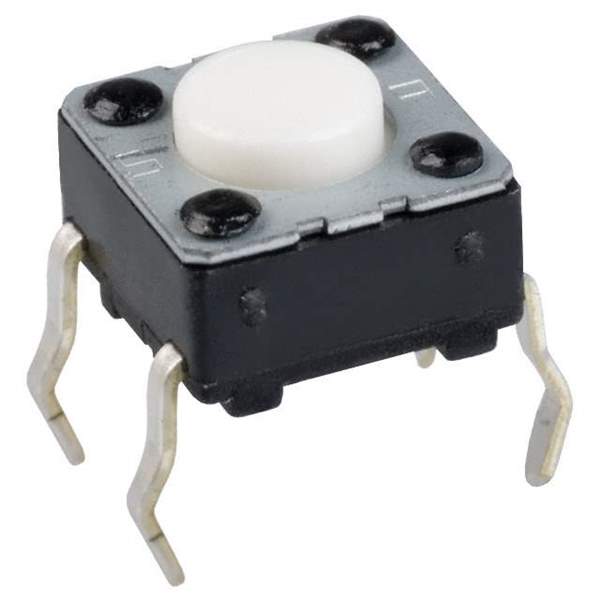

The EVQPA series tactile switch from Panasonic Electronic Components is a high-quality switch designed for use in a variety of applications.

  • Circuit Configuration: SPST-NO
  • Switch Function: Off-Mom
  • Switch Travel: 0.25mm
  • Actuator Orientation: Top Actuated
  • Actuator Type: Standard
  • Operating Force: 160gf
  • Mechanical Life: 100,000 Cycles
  • Mounting Type: Through Hole
  • Operating Temperature: -20°C to 70°C
  • Actuator Height Off PCB: 4.30mm
  • Outline: 6.00mm x 6.00mm
  • Illumination: Non-Illuminated
  • Contact Rating @ Voltage: 0.02A @ 15VDC
