Same model may have multiple batches, images only for reference.

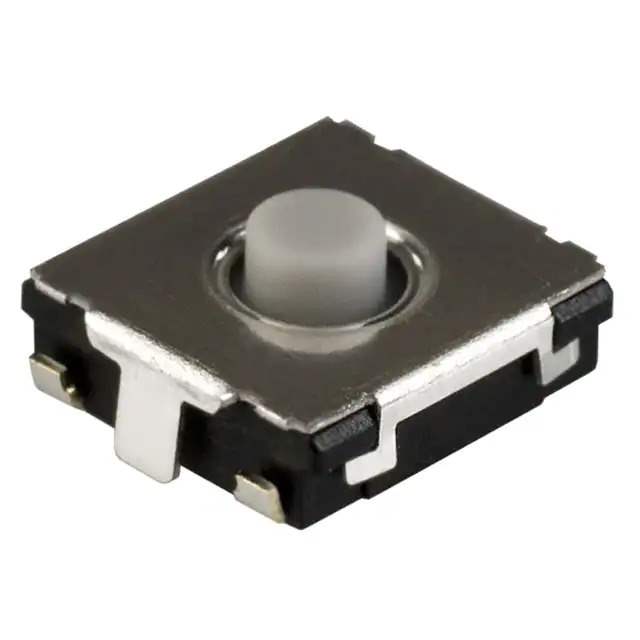

EVQ-P0Q02Q Real Image
Same model may have multiple batches, images only for reference.

EVQ-P0Q02Q

Part No EVQ-P0Q02Q
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.02A 15V / Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Panasonic
Series EVQP0
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 2.50mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 6.50mm x 6.00mm
Illumination Non-Illuminated
Operating Force 100gf
Temperature Range - Operating -40°C ~ 85°C
Switch Travel 0.30mm
Mechanical Life 1,000,000 Cycles
Base Product Number EVQ-P0
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 918771-EVQ-P0Q02Q
Ultra Librarian 3D Model Ultra Librarian EVQ-P0Q02Q CAD Model

Description

The EVQP0 series tactile switch is a reliable and high-performance component designed for various electronic applications.

  • Termination Style: J lead
  • Standard Package: 2,000 pcs
  • Circuit Configuration: SPST-NO
  • Switch Function: Off-Mom
  • Switch Travel: 0.30mm
  • Operating Force: 100gf
  • Actuator Orientation: Top Actuated
  • Outline Dimensions: 6.50mm x 6.00mm
  • Contact Rating: 0.02A @ 15VDC
  • Mechanical Life: 1,000,000 cycles
  • Mounting: Surface Mount
  • Operating Temperature Range: -40°C to 85°C
  • Manufacturer: Panasonic
