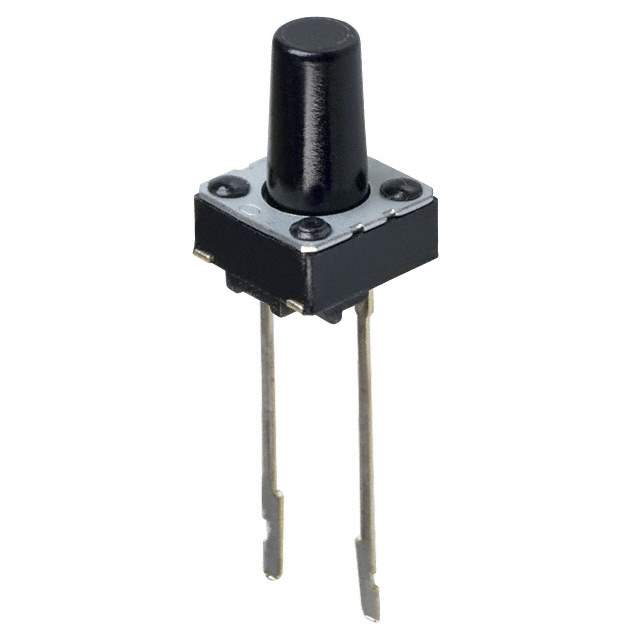

Same model may have multiple batches, images only for reference.

EVQ-21507K

Name: EVQ-21507K
Brand: Panasonic
SKU: 1337009
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	EVQ-21507K
Manufacturer	Panasonic
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.02A 15V / Tactile Switch SPST-NO Top Actuated Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - Tactile Switches
Mfr	Panasonic Electronic Components
Series	EVQ2
Package	Cut Tape (CT) Tape & Box (TB)
Product Status	Obsolete
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.02A @ 15VDC
Actuator Type	Standard
Mounting Type	Through Hole
Actuator Height off PCB, Vertical	7.00mm
Actuator Orientation	Top Actuated
Termination Style	PC Pin
Outline	6.00mm x 6.00mm
Illumination	Non-Illuminated
Operating Force	160gf
Temperature Range - Operating	-20°C ~ 70°C
Switch Travel	0.25mm
Mechanical Life	100,000 Cycles
Base Product Number	EVQ-21
Standard Package	1,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.50.9031
Win Source Part Number	1337009-EVQ-21507K
Ultra Librarian 3D Model	Ultra Librarian EVQ-21507K CAD Model

Alternative Products

Description

The Panasonic Electronic Components EVQ-21507K is a tactile switch from the EVQ2 series.

Manufacturer: Panasonic Electronic Components
Series: EVQ2
Switch Type: Tactile
Circuit: SPST-NO
Function: Off-Mom
Actuator Type: Standard
Switch Travel: 0.25mm
Contact Rating: 0.02A @ 15VDC
Actuator Orientation: Top Actuated
Outline: 6.00mm x 6.00mm
Illumination: Non-Illuminated
Operating Temperature: -20°C to 70°C
Actuator Height off PCB: 7.00mm
Mounting Type: Through Hole
Standard Package: 1,000
Status: Obsolete
MSL Level: 1 (Unlimited)
