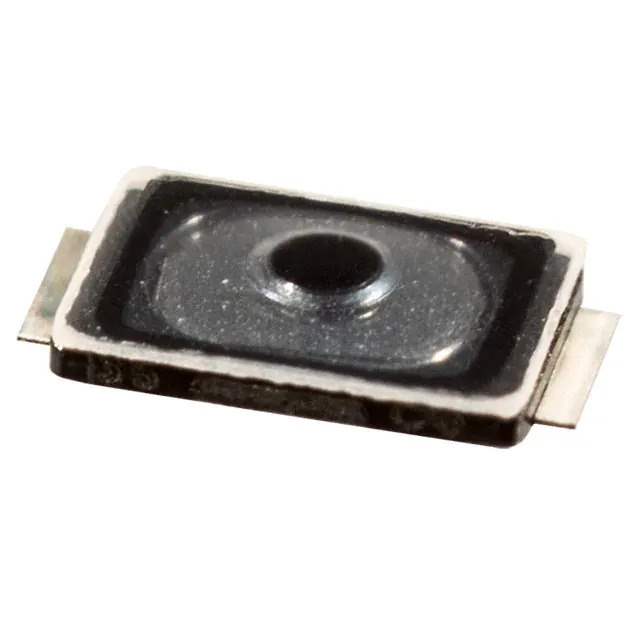

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Panasonic
Series EVPAW
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 0.60mm
Actuator Orientation Top Actuated
Termination Style SMD (SMT) Tab
Outline 3.00mm x 2.00mm
Illumination Non-Illuminated
Operating Force 240gf
Ingress Protection IP67 - Dust Tight, Waterproof
Temperature Range - Operating -40°C ~ 85°C
Switch Travel 0.13mm
Mechanical Life 500,000 Cycles
Base Product Number EVP-AW
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 918769-EVP-AWCD4A
Ultra Librarian 3D Model Ultra Librarian EVP-AWCD4A CAD Model

Description

The 918769-EVP-AWCD4A is a tactile switch from Panasonic.

  • Category: Switches - Tactile Switches
  • Series: EVPAW series
  • Termination Style: SMD (SMT) Tab
  • Features: None
  • Package Type: Tape & Reel
  • Standard Package: 10,000 pieces
  • Circuit Configuration: SPST-NO
  • Switch Function: Off-Momentary
  • Actuator Type: Standard
  • Switch Travel: 0.13mm
  • Contact Rating: 0.02A @ 15VDC
  • Actuator Orientation: Top Actuated
  • Outline Dimensions: 3.00mm x 2.00mm
  • Illumination: Non-Illuminated
  • Operating Force: 240gf
  • Mechanical Life: 500,000 cycles
  • Mounting: Surface Mountable
  • Operating Temperature Range: -40°C to 85°C
  • HTSUS Code: 8536.50.9031
  • Base Product Number: EVP-AW
  • Product Status: Active
