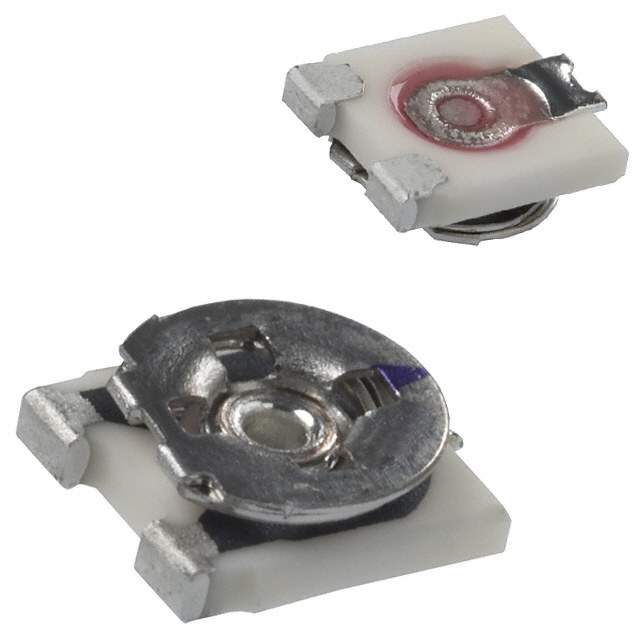

EVM1DSX30B55 Real Image
Same model may have multiple batches, images only for reference.

EVM1DSX30B55

Part No EVM1DSX30B55
Manufacturer Panasonic
Catalog Potentiometers, Variable Resistors
Description Res Cermet Trimmer 500K Ohm 25% 1/10W 1(Elec)/1(Mech)Turn 1.8mm (5 X 5.2 X 2.3mm) J-Hook SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Silver
Composition Cermet
Depth 4.5 mm
Height 1.4 mm
Lead Free Yes
Length 3.8 mm
Maximum Operating Temperature 100 °C
Max Power Dissipation 200 mW
Military Standard Not
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Turns 1
Packaging Cut Tape
Power Rating 200 mW
Radiation Hardening No
REACH SVHC No SVHC
Resistance 500 kΩ
RoHS Compliant
Temperature Coefficient 250 ppm/°C
Termination Foot Print
Tolerance 25 %
Voltage Rating 50 V
Weight 58 mg
Width 3.8 mm
Win Source Part Number 1058058-EVM1DSX30B55
Categories Potentiometers,Variable Resistors
Manufacturer Panasonic
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian EVM1DSX30B55 CAD Model

Description

The Panasonic EVM1DSX30B55 is a high-quality variable resistor that is widely used in the electronics industry.

  • Product: EVM1DSX30B55
  • Manufacturer: Panasonic
  • Resistance: 500 kΩ
  • Power Rating: 200 mW
  • Mounting: Surface-Mountable
  • RoHS Compliant: Yes
  • Packaging: Cut Tape
