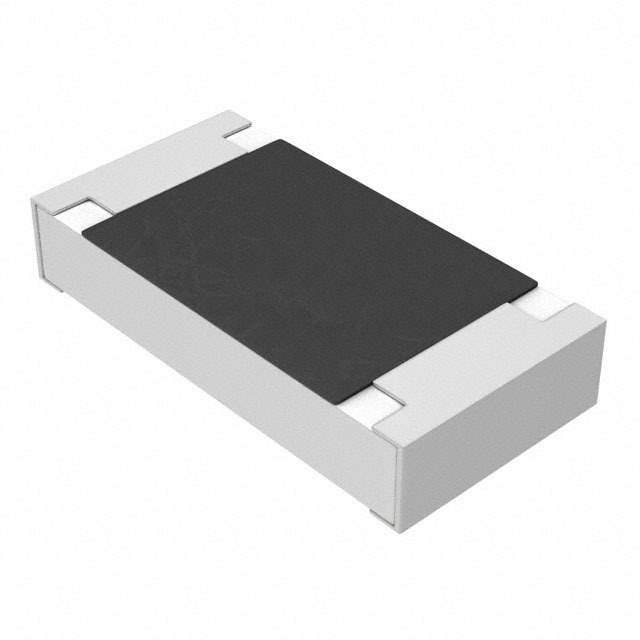

The ERJ8GEYJ205V is a surface-mount thick film chip resistor manufactured by Panasonic. It's designed for general-purpose applications requiring reliable and stable resistance in a compact form factor.

Applications

• Consumer Electronics: Used in devices such as televisions, audio equipment, and mobile phones for current limiting, voltage division, and pull-up/pull-down resistor applications.
• Industrial Equipment: Employed in industrial control systems, power supplies, and measurement instruments for stable and accurate resistance.
• Automotive Electronics: Used in automotive control units (ECUs), sensors, and lighting systems where reliability in harsh environments is crucial.
• Medical Devices: Found in medical monitoring equipment, diagnostic tools, and therapeutic devices for precise electronic control.
• Communication Equipment: Used in network devices, telecom infrastructure, and wireless communication systems for signal conditioning and impedance matching.

Features

• High Reliability: Manufactured with high-quality materials and processes for long-term stability.
• Small Size: Compact 1206 package (3.2mm x 1.6mm) for space-saving designs.
• Excellent Temperature Stability: Low temperature coefficient of resistance (TCR) ensures stable performance over a wide temperature range.
• RoHS Compliant: Environmentally friendly and compliant with RoHS standards.
• High Surge Resistance: Designed to withstand surge events, enhancing circuit protection.

Benefits

• Precise Resistance: Provides accurate and consistent resistance values for proper circuit operation.
• Space Saving: Small package size allows for dense circuit layouts.
• Long-Term Stability: Maintains resistance value over time, minimizing the need for frequent replacements.
• Wide Operating Temperature Range: Operates reliably in diverse environmental conditions.
• Easy to Solder: Designed for easy and reliable surface mount soldering.

Additional Details

The ERJ8GEYJ205V has a resistance value of 2 MΩ with a tolerance of ±5%. It has a power rating of 0.25W (1/4W). The operating temperature range is typically -55°C to +155°C. The resistor is constructed using a thick film resistive element on an alumina substrate with a protective overcoat. The terminations are solder-plated, providing excellent solderability. This resistor is suitable for general-purpose applications where precision, stability, and compact size are important factors. It is often used in circuits where high resistance values are needed without sacrificing board space.
