Same model may have multiple batches, images only for reference.

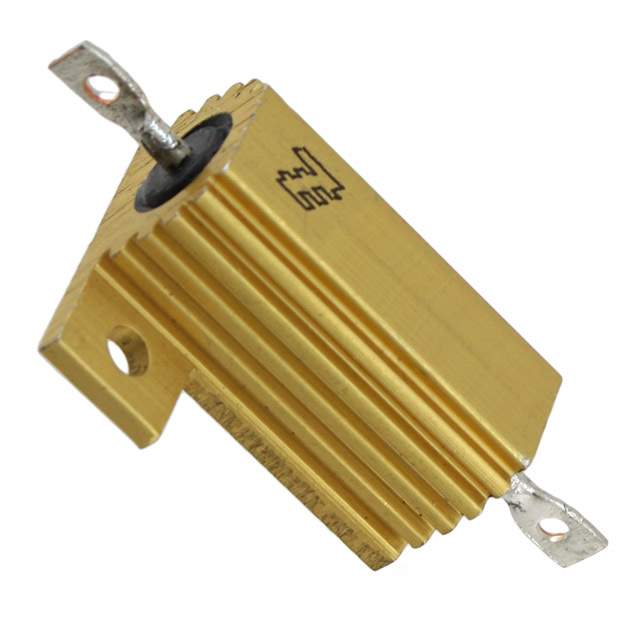

HSA252R2J Real Image
Same model may have multiple batches, images only for reference.

HSA252R2J

Part No HSA252R2J
Manufacturer TE Connectivity
Catalog Chassis Mount Resistors
Description RES CHAS MNT 2.2 OHM 5% 25W / 2.2 Ohms ±5% 25W Wirewound Chassis Mount Resistor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr TE Connectivity Passive Product
Series HS, CGS
Package Bulk
Resistance 2.2 Ohms
Tolerance ±5%
Power (Watts) 25W
Composition Wirewound
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 1.142" L x 1.102" W (29.00mm x 28.00mm)
Height - Seated (Max) 0.591" (15.00mm)
Lead Style Solder Lugs
Package / Case Axial, Box
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.29.0000
Other Names 3-1625971-3,A102138,3-1625971-3-ND,316259713
Standard Package 100
Win Source Part Number 1034902-HSA252R2J
Ultra Librarian 3D Model Ultra Librarian HSA252R2J CAD Model

Description

The TE Connectivity Passive Product HSA252R2J Resistor is a high-quality electronic component that is perfect for a wide range of applications.

  • Category: Resistors>Chassis Mount Resistors
  • Tolerance: ±5%
  • Temperature Coefficient: ±50ppm/°C
  • Power Rating: 25W
  • Mounting Feature: Flanges
  • Coating/Housing: Aluminum
  • Package: Bulk
  • Standard Package: 100
