Products specifications Report Issue?

Win Source Part Number WS1197014-5003
Manufacturer Keystone Electronics
Category Test and Measurement -Test Points
Series THM
Package Bulk
Product Status Active
Type PC Test Point, Miniature
Mounting Type Through Hole
Color Orange
Hole Diameter 0.040" (1.02mm)
Size / Dimension 0.100" Dia x 0.180" L (2.54mm x 4.57mm)
Ultra Librarian 3D Model Ultra Librarian 5003 CAD Model

Description

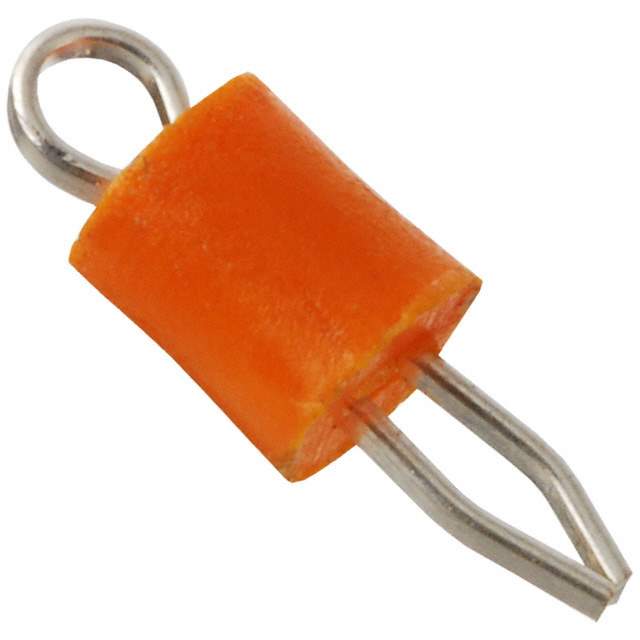

The THM PC Test Point is a miniature electronic component manufactured by Keystone Electronics. It is designed for test and measurement applications, specifically for use as a test point. The test point is orange in color and has a small size of 0.100" diameter and 0.180" length. It features a hole diameter of 0.040" and is mounted through a hole. The THM series test point is available in bulk packaging and is currently an active product in the market. With its compact size and reliable performance, it is suitable for various electronic testing needs.
