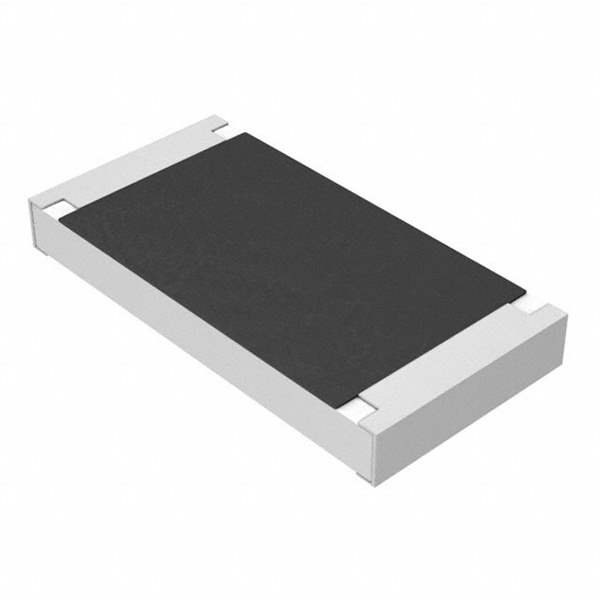

ERJ-12SF1401U Panasonic – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Product Status Not For New Designs
Resistance 1.4 kOhms
Tolerance ±1%
Power (Watts) 0.75W, 3/4W
Composition Thick Film
Features Automotive AEC-Q200
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 2010 (5025 Metric)
Supplier Device Package 2010
Size / Dimension 0.197" L x 0.098" W (5.00mm x 2.50mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1581358-ERJ-12SF1401U
Ultra Librarian 3D Model Ultra Librarian ERJ-12SF1401U CAD Model
