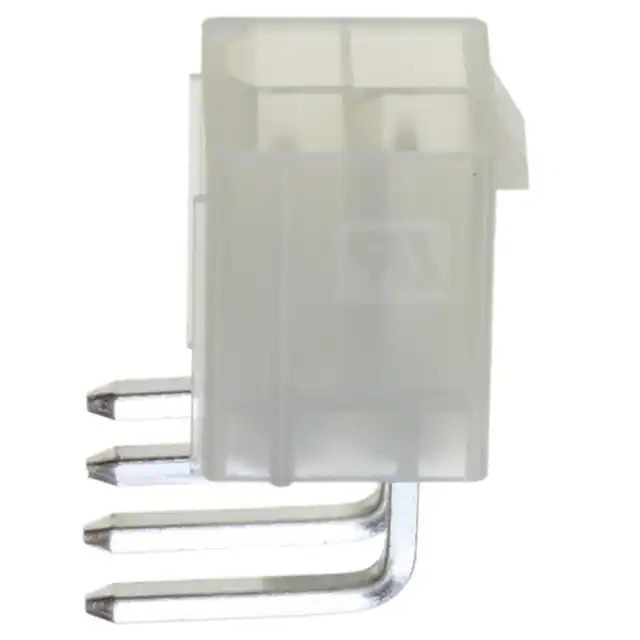

1586041-4 TE Connectivity
Same model may have multiple batches, images only for reference.

1586041-4

Part No 1586041-4
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 4POS 4.2MM / Connector Header Through Hole, Right Angle 4 position 0.165" (4.20mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series VAL-U-LOK
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.165" (4.20mm)
Number of Positions 4
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating -
Contact Length - Post 0.142" (3.60mm)
Overall Contact Length -
Insulation Height 0.402" (10.20mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 80.0µin (2.03µm)
Contact Finish - Post Tin
Contact Material Brass Alloy
Insulation Material Polyamide (PA), Nylon
Features -
Temperature Range - Operating -40°C ~ 105°C
Ingress Protection -
Material Flammability Rating UL94 V-2
Insulation Color Natural
Current Rating (Amps) 9A
Voltage Rating 600VAC
Mated Stacking Heights -
Contact Finish Thickness - Post 80.0µin (2.03µm)
Applications General Purpose, Industrial, Lighting
Base Product Number 1586041
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362606-1586041-4
Ultra Librarian 3D Model Ultra Librarian 1586041-4 CAD Model

Description

The 1362606-1586041-4 is a male pin header connector from TE Connectivity AMP Connectors.

  • Series: VAL-U-LOK
  • Mounting Type: Through Hole, Right Angle
  • Pitch: 0.165" (4.20mm)
  • Features: Shrouded, 4-Wall
  • Number of Contacts: 4
  • Contact Gender: Male Pin
  • Connection Type: Board to Cable/Wire
  • Contact Material: Brass Alloy
  • Contact Finish: Tin
  • Contact Finish Thickness: 80.0μin (2.03μm)
  • Current Rating: 9A
  • Temperature Range: -40°C to 105°C
  • REACH Compliance: Yes
  • ECCN: EAR99
  • Fastening Type: Secure Locking Ramp
