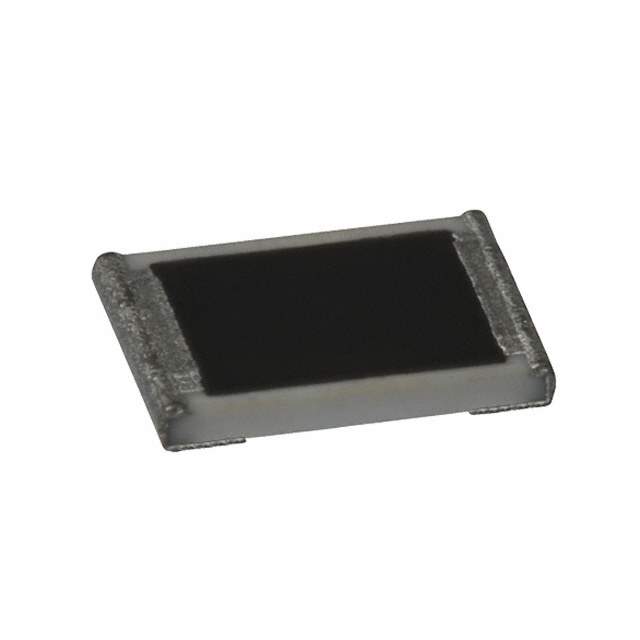

ERA3AEB1182V Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package 0603
Case Code (Imperial) 0603
Case / Package 1608
Composition Metal Film, Thin Film
Contact Plating Tin
Depth 800 µm
Features Automotive AEC-Q200
Height 450 µm
Lead Free Yes
Length 1.6 mm
Maximum Operating Temperature 155 °C
Max Power Dissipation 100 mW
Military Standard Not
Min Operating Temperature -55 °C
Mount Surface Mount
Number of Pins 2
Number of Terminations 2
Power Rating 100 mW
Radiation Hardening No
REACH SVHC No SVHC
Resistance 11.8 kΩ
RoHS Compliant
Schedule B 8533210045, 8533210045
Temperature Coefficient 25 ppm/°C
Termination SMD/SMT
Tolerance 0.1 %
Voltage Rating 75 V
Voltage Rating (DC) 75 V
Width 800 µm
Win Source Part Number 1047334-ERA3AEB1182V
Categories Chip Resistor - Surface Mount
Manufacturer Panasonic
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian ERA3AEB1182V CAD Model

Description

The Panasonic ERA3AEB1182V is a chip resistor that is surface mountable and manufactured by Panasonic.

  • Resistance: 11.8 kΩ
  • Power Rating: 100 mW
  • Voltage Rating: 75 V
  • Tolerance: 0.1%
  • Temperature Coefficient: 25 ppm/°C
  • Composition: Metal film and thin film
  • Contact Plating: Tin
  • Terminations: 2
  • Length: 1.6 mm
  • Width: 0.8 mm
  • Height: 450 µm
  • Depth: 800 µm
  • Case/Package: 1608 or 0603
  • Alternative Parts: RT0603BRD0711K8L, RT0603BRD0711K5L, and RT0603BRD0711KL
  • Supply Status: Shortage
  • Maximum Operating Temperature: 155 °C
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Minimum Operating Temperature: -55 °C
  • Schedule B: 8533210045
