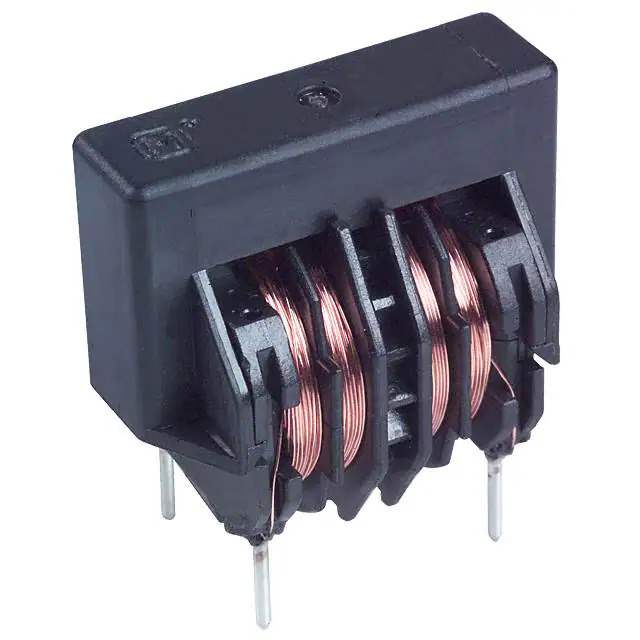

ELF-17N002A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Panasonic
Series N
Package Bulk
Product Status Obsolete
Number of Lines 2
Current Rating (Max) 200mA
DC Resistance (DCR) (Max) 7.543Ohm (Typ)
Mounting Type Through Hole
Size / Dimension 0.591" L x 0.894" W (15.00mm x 22.70mm)
Height (Max) 0.886" (22.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number ELF-17
Standard Package 200 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 876259-ELF-17N002A
Ultra Librarian 3D Model Ultra Librarian ELF-17N002A CAD Model

Description

The ELF-17N002A is a common mode choke filter designed for electronic components manufactured by Panasonic.

  • Series: N
  • Package Size: 0.591" L x 0.894" W (15.00mm x 22.70mm)
  • Maximum Current Rating: 200mA
  • DC Resistance (DCR): 7.543Ohm (Typ)
  • Mounting Type: Through Hole
  • Package: Vertical, 4 PC Pin
  • Height: 0.886" (22.50mm)
  • Package: Bulk
  • Standard Package Quantity: 200 pcs
  • Product Status: Obsolete
