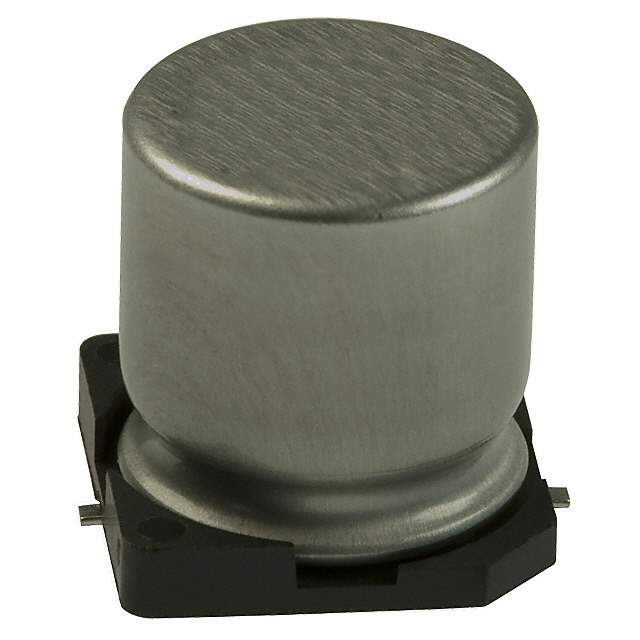

EEV-FK1V681Q Real Image
Same model may have multiple batches, images only for reference.

EEV-FK1V681Q

Part No EEV-FK1V681Q
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 680UF 20% 35V SMD / 680 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series FK
Package Tape & Reel
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 618.8 mA @ 120 Hz
Ripple Current @ High Frequency 1 A @ 100 kHz
Impedance 60 mOhms
Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.551" (14.00mm)
Surface Mount Land Size 0.531" L x 0.531" W (13.50mm x 13.50mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number EEV-FK
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names PCE3465DKR,EEVFK1V681Q,Q1568429I,PCE3465TR,PCE3465CT
Standard Package 200
Win Source Part Number 1203108-EEV-FK1V681Q
Ultra Librarian 3D Model Ultra Librarian EEV-FK1V681Q CAD Model

Description

The Panasonic Electronic Components EEV-FK1V681Q is an aluminum electrolytic capacitor that is manufactured by Panasonic Electronic Components.

  • Mounting Type: SMD (SMT)
  • Package / Case: Radial, Can - SMD
  • Capacitance: 680μF
  • Voltage Rating: 35V
  • Application: Automotive
  • Height: 0.551" (14.00mm)
  • Temperature Range: -55°C ~ 105°C
  • Tolerance: ±20%
