Products specifications

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Panasonic Electronic Components
Packaging Bulk
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 318.5 mA @ 120 Hz
Ripple Current @ High Frequency 455 mA @ 100 kHz
Impedance 130 mOhms
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.500" (12.70mm)
Mounting Through Hole
Case / Package Radial, Can
Base Product Number EEU-FM
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number P12924,EEUFM1E101
Standard Package 200
Win Source Part Number 1331497-EEU-FM1E101
Ultra Librarian 3D Model Ultra Librarian EEU-FM1E101 CAD Model

Description

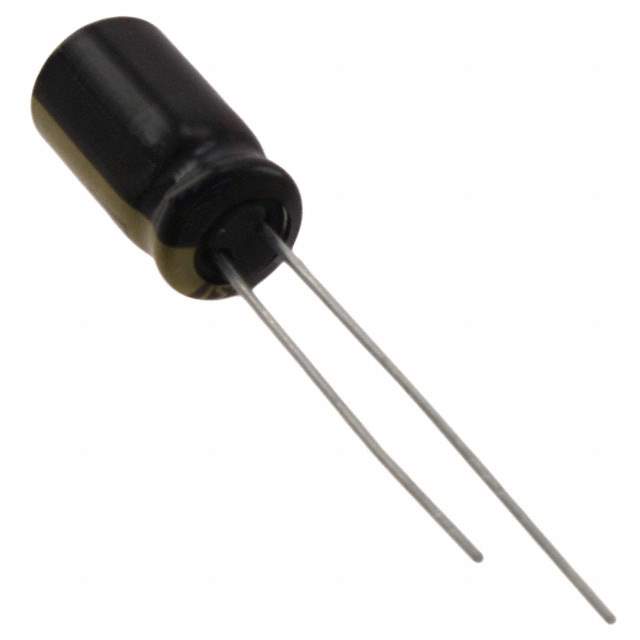

The Panasonic EEU-FM1E101 is an aluminum electrolytic capacitor that is designed for through-hole mounting.

  • Capacitance: 100 µF
  • Tolerance: ±20%
  • Voltage Rating: 25V
  • Impedance: 130 mOhms
  • Ripple Current: 318.5 mA @ 120 Hz and 455 mA @ 100 kHz
  • Lifetime: 2000 Hrs @ 105°C
  • Polarization: Polarized
  • Package: Radial Can
  • Size: 0.248" Dia (6.30mm)
  • Lead Spacing: 0.098" (2.50mm)
  • Application: General-Purpose
