Products specifications

Manufacturer Panasonic
Win Source Part Number 1170944-EEFSX0D561E4
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian EEFSX0D561E4 CAD Model

Description

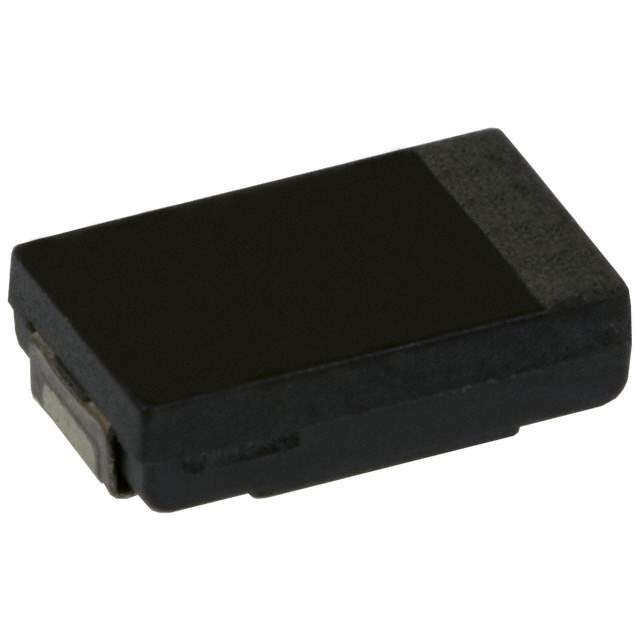

The EEFSX0D561E4 is an aluminum polymer capacitor manufactured by Panasonic. These capacitors are known for their low Equivalent Series Resistance (ESR), high ripple current capability, and long operational life, making them suitable for demanding applications.

Applications:

  • Power supply filtering and decoupling
  • DC-DC converters
  • Voltage regulators
  • High-frequency switching circuits
  • Industrial equipment

Features:

  • 560µF Capacitance
  • 2V Rated Voltage
  • Extremely Low ESR
  • High ripple current capability
  • Long life expectancy

Benefits:

  • Improved power supply stability and efficiency
  • Reduced voltage ripple and noise
  • Enhanced performance in high-frequency circuits
  • Increased reliability and lifespan of electronic devices
  • Compact size for space-constrained applications

Additional Details:

The EEFSX0D561E4's extremely low ESR minimizes power dissipation and heat generation, which is crucial in high-current applications. The aluminum polymer construction provides excellent stability over temperature and frequency. This capacitor is designed for surface mount technology (SMT) and comes in a specific case size. It is important to refer to the datasheet for detailed specifications, including ESR values at different frequencies, ripple current ratings, operating temperature range, and soldering guidelines. The capacitor's low impedance characteristics contribute to effective noise reduction in power supply circuits. Proper thermal management is essential to maximize the capacitor's lifespan. They are frequently employed to improve the lifespan and performance of electronic products. The part's operating life is dependent upon factors such as ambient temperature and ripple current.
