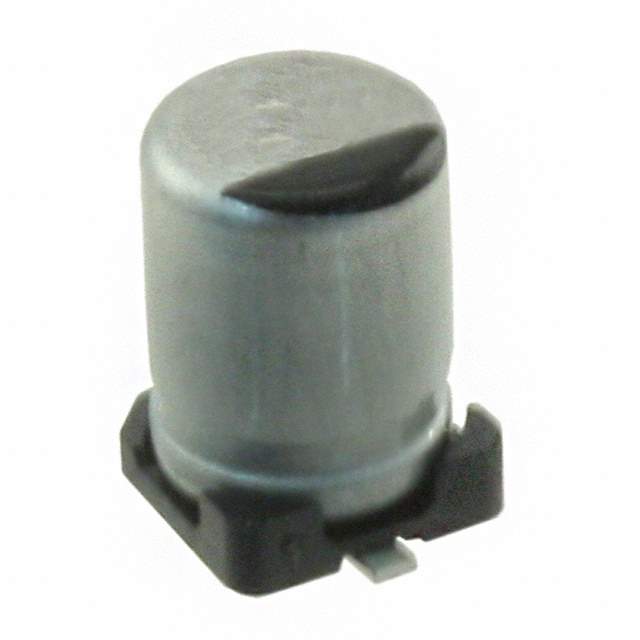

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Capacitance 47 µF
Case / Package Radial
Contact Plating Tin
Diameter 4 mm
ESR (Equivalent Series Resistance) 850 mΩ
Height 5.8 mm
Height - Seated (Max) 6.096 mm
Lead Diameter 650 µm
Lead Pitch 1 mm
Leakage Current 7.5 µA
Length 5.8 mm
Life (Hours) 2000 hours
Max Operating Temperature 105 °C
Min Operating Temperature -55 °C
Mount Surface Mount
Packaging Cut Tape
Polarity Polar
Radiation Hardening No
REACH SVHC No SVHC
Ripple Current 160 mA
Ripple Current (AC) 160 mA
RoHS Compliant
Schedule B 8532220020, 8532220020
Termination SMD/SMT
Tolerance 20 %
Voltage 16 V
Voltage Rating 16 V
Voltage Rating (DC) 16 V
Win Source Part Number 1194442-EEEFT1C470AR
Categories Aluminum Capacitors
Manufacturer Panasonic
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian EEEFT1C470AR CAD Model

Description

The Panasonic EEEFT1C470AR is an aluminum capacitor with a capacitance of 47µF and a voltage rating of 16V.

  • Capacitance: 47µF
  • Voltage Rating: 16V
  • Tolerance: 20%
  • Equivalent Series Resistance (Max): 850mΩ
  • Mounting Type: Surface-Mount
  • Package: Radial
  • Polarized: Yes
  • Operating Temperature: -55°C to 105°C
  • REACH SVHC: Compliant
  • ECCN: EAR99
  • Packaging: Cut Tape
