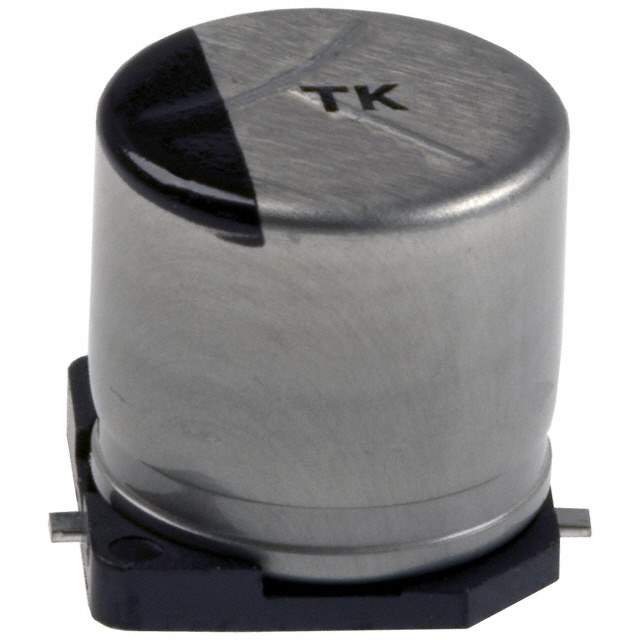

EEE-TPC101XAP Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series TP
Package Tape & Reel
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 2000 Hrs @ 125°C
Temperature Range - Operating -40°C ~ 125°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive, High Temperature Reflow
Ripple Current @ Low Frequency 128.1 mA @ 120 Hz
Ripple Current @ High Frequency 197 mA @ 100 kHz
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.303" (7.70mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number EEE-TPC
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names PCE4924TR,EEETPC101XAP,PCE4924CT,PCE4924DKR
Standard Package 900
Win Source Part Number 990240-EEE-TPC101XAP
Ultra Librarian 3D Model Ultra Librarian EEE-TPC101XAP CAD Model

Description

The Panasonic EEE-TPC101XAP is an aluminum electrolytic capacitor that is designed for use in automotive and high-temperature reflow applications.

  • Manufacturer: Panasonic
  • Product Name: EEE-TPC101XAP
  • Type: aluminum electrolytic capacitor
  • Application: automotive and high-temperature reflow
  • Capacitance: 100µF
  • Voltage Rating: 16V
  • Package: radial, can-SMD
  • Operating Temperature: -40°C to 125°C
  • Supply and Demand Status: balanced
