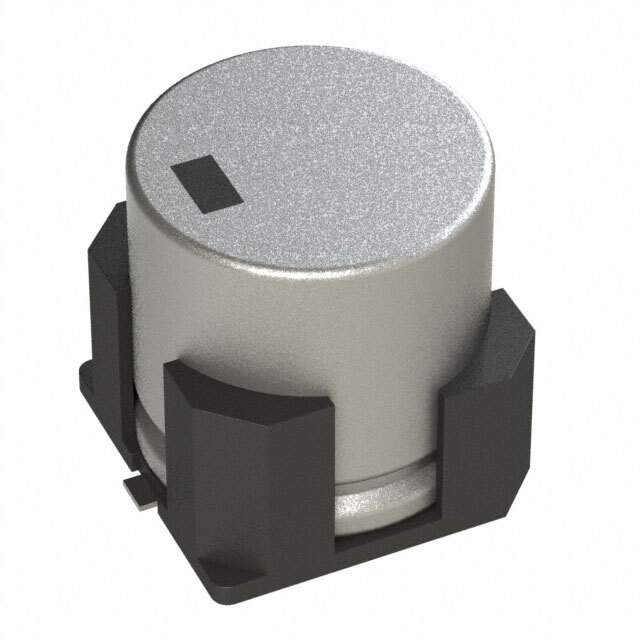

EEE-TP1J561V Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series TP, Anti-Vibration
Package Tape & Reel
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) 100mOhm @ 100kHz
Lifetime @ Temp. 3000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive, High Temperature Reflow
Ripple Current @ Low Frequency 1.425 A @ 120 Hz
Ripple Current @ High Frequency 1.9 A @ 100 kHz
Size / Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 0.669" (17.00mm)
Surface Mount Land Size 0.669" L x 0.669" W (17.00mm x 17.00mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number EEE-TP
Standard Package 125
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1338278-EEE-TP1J561V
Ultra Librarian 3D Model Ultra Librarian EEE-TP1J561V CAD Model

Description

The Panasonic Electronic Components aluminum electrolytic capacitor is a high-quality and reliable solution for a wide range of applications.

  • Capacitance: 560 µF
  • Voltage Rating: 63V
  • Construction: Polarized
  • Packaging: Radial, Can - SMD
  • Ripple Current: 1.425 A @ 120 Hz and 1.9 A @ 100 kHz
  • Diameter: 0.630" (16.00mm)
  • Height: 0.669" (17.00mm)
  • Temperature Range: -55°C to 125°C
  • Lifetime: 3000 hours @ 125°C
  • Packaging: Tape and Reel
  • Standard Package: 125
  • Series: TP, Anti-Vibration
  • AEC-Q200: Yes
