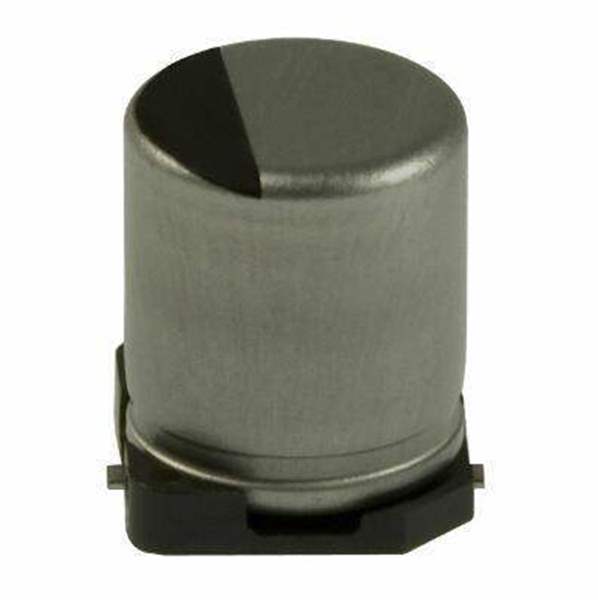

EEE-HA1V101XP Panasonic Electronic Components
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Panasonic Electronic Components
Category Capacitors Aluminum Electrolytic Capacitors
Part Status Not For New Designs
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Operating Temperature -40°C ~ 105°C
Polarization Polar
Ripple Current @ Low Frequency 84 mA @ 120 Hz
Ripple Current @ High Frequency 142.8 mA @ 10 kHz
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.303" (7.70mm)
Win Source Part Number WS1307720-EEE-HA1V101XP
Ultra Librarian 3D Model Ultra Librarian EEE-HA1V101XP CAD Model

Description

100 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
