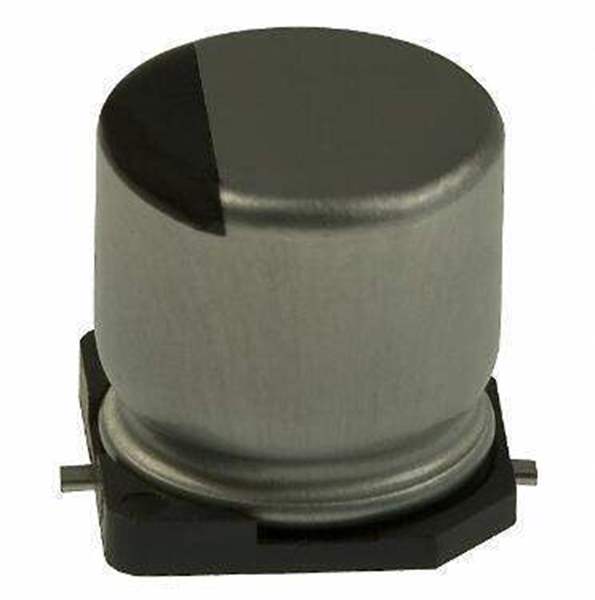

EEE-HA1E101UPPanasonic Electronic Components
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Panasonic Electronic Components
Category Capacitors Aluminum Electrolytic Capacitors
Part Status Not For New Designs
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Polarization Polar
Operating Temperature -40°C ~ 105°C
Ripple Current @ Low Frequency 91 mA @ 120 Hz
Ripple Current @ High Frequency 154.7 mA @ 10 kHz
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.244" (6.20mm)
Win Source Part Number WS1307719-EEE-HA1E101UP
Ultra Librarian 3D Model Ultra Librarian EEE-HA1E101UP CAD Model

Description

100 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
