Same model may have multiple batches, images only for reference.

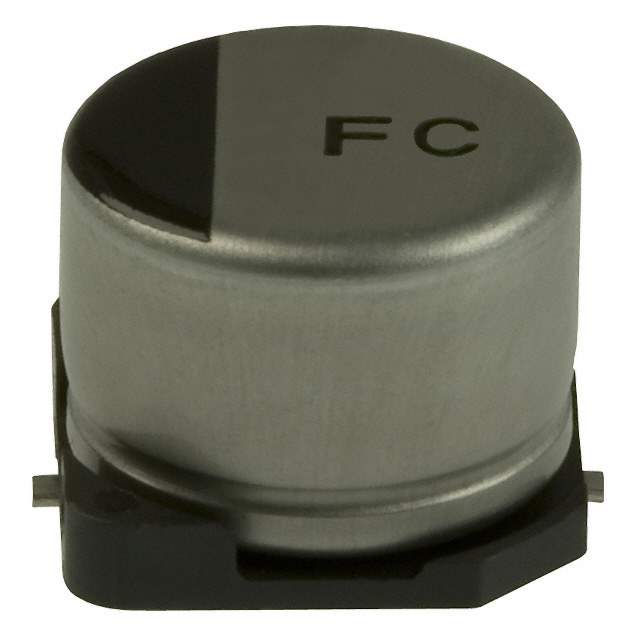

EEE-FC1H220P Real Image
Same model may have multiple batches, images only for reference.

EEE-FC1H220P

Part No EEE-FC1H220P
Manufacturer Panasonic
Catalog Aluminum Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series FC
Package Tape & Reel
Product Status Not For New Designs
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 90 mA @ 120 Hz
Ripple Current @ High Frequency 120 mA @ 100 kHz
Impedance 700 mOhms
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.244" (6.20mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number EEE-FC
Other Names PCE4015CT,PCE4015TR,EEEFC1H220P,PCE4015DKR,Q4471606D
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307333-EEE-FC1H220P
Ultra Librarian 3D Model Ultra Librarian EEE-FC1H220P CAD Model

Description

The Panasonic Electronic Components aluminum electrolytic capacitor is a high-quality product that is used in various automotive applications.

  • Capacitance: 22 µF
  • Voltage Rating: 50 V
  • Tolerance: ±20%
  • Height: 0.244" (6.20mm)
  • Dimension: 0.315" Dia (8.00mm)
  • Ripple Current (Low Frequency): 90 mA @ 120 Hz
  • Ripple Current (High Frequency): 120 mA @ 100 kHz
