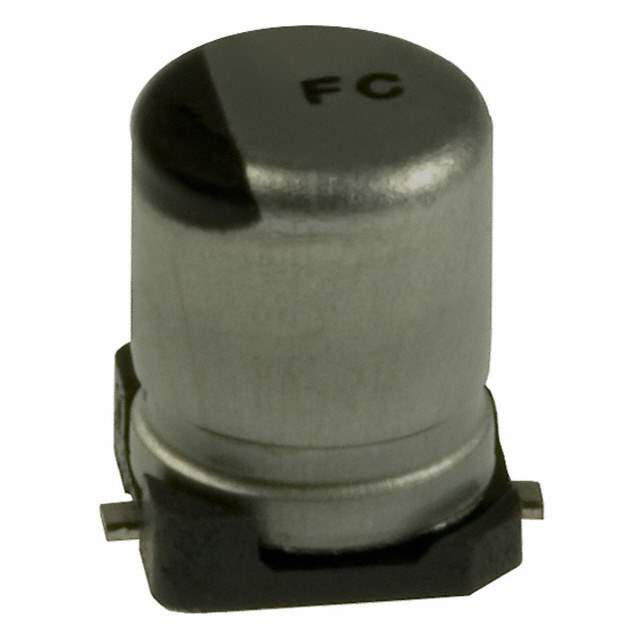

EEE-FC0J220R Real Image
Same model may have multiple batches, images only for reference.

EEE-FC0J220R

Part No EEE-FC0J220R
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 6.3V SMD / 22 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series FC
Package Tape & Reel
Product Status Not For New Designs
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 6.3 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 45 mA @ 120 Hz
Ripple Current @ High Frequency 60 mA @ 100 kHz
Impedance 3 Ohms
Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number EEE-FC
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names PCE3984CT,EEEFC0J220R,PCE3984TR,PCE3984DKR
Standard Package 2,000
Win Source Part Number 969856-EEE-FC0J220R
Ultra Librarian 3D Model Ultra Librarian EEE-FC0J220R CAD Model

Description

The EEE-FC0J220R is an aluminum electrolytic capacitor that is ideal for automotive applications. The capacitor is manufactured by Panasonic Electronic Components.

  • Application: Automotive
  • Capacitance: 22 µF
  • Tolerance: ±20%
  • Voltage Rating: 6.3 V
  • Impedance: 3 Ohms
  • Package: Radial, Can - SMD
  • Packaging: Tape and Reel
  • Height: 0.213" (5.40mm)
  • Surface Mount Land Size: 0.169" L x 0.169" W (4.30mm x 4.30mm)
  • Operating Temperature: -40°C to 105°C
  • Lifetime: 1000 Hrs @ 105°C
  • AEC-Q200 Rated: Yes
  • Ripple Current @ Low Frequency: 45 mA @ 120 Hz
  • Ripple Current @ High Frequency: 60 mA @ 100 kHz
  • Standard Package: 2,000
