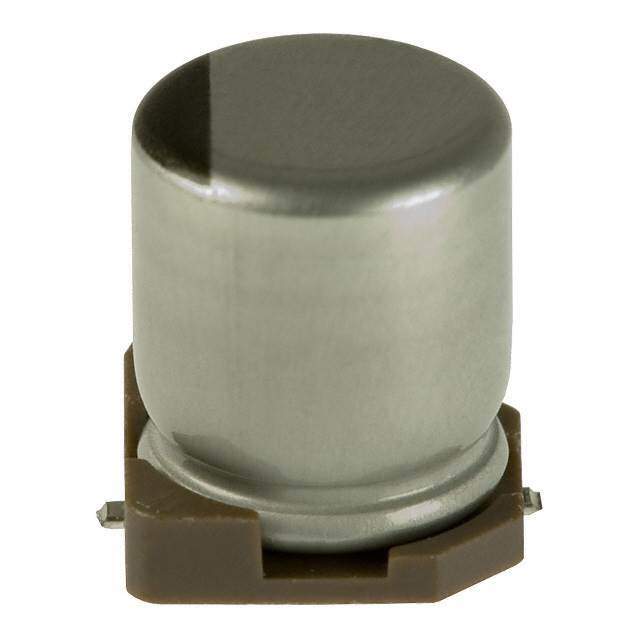

UUD1H470MCL1GS Real Image
Same model may have multiple batches, images only for reference.

UUD1H470MCL1GS

Part No UUD1H470MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 50V SMD / 47 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UUD
Package Tape & Reel
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 92.5 mA @ 120 Hz
Ripple Current @ High Frequency 185 mA @ 100 kHz
Impedance 680 mOhms
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.303" (7.70mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names Q2912286A,493-2303-1,493-2303-2,493-2303-6
Standard Package 900
Win Source Part Number 1029066-UUD1H470MCL1GS
Ultra Librarian 3D Model Ultra Librarian UUD1H470MCL1GS CAD Model

Description

The UUD1H470MCL1GS is an aluminum electrolytic capacitor from Nichicon's UUD series.

  • Capacitance: 47 µF
  • Voltage Rating: 50 V
  • Tolerance: ±20%
  • AEC-Q200 Rated: Yes
  • Lifetime: 2000 hours @ 105°C
  • Design: Polarized
  • Mounting Technology: SMD (SMT)
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Seated Height: 0.303" (7.70mm)
  • Impedance: 680 mOhms
  • Ripple Current: 92.5 mA @ 120 Hz and 185 mA @ 100 kHz
  • Application: Suitable for use in automotive applications
  • Packaging: Tape and reel format
