Same model may have multiple batches, images only for reference.

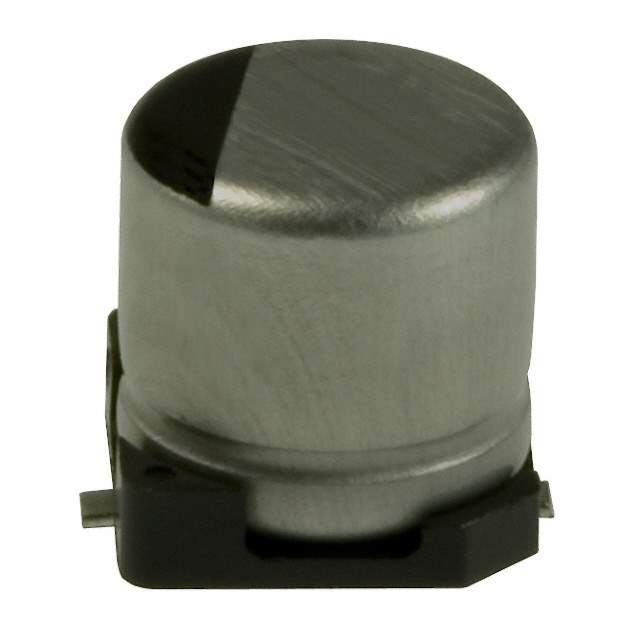

EEE-1VA220WR Real Image
Same model may have multiple batches, images only for reference.

EEE-1VA220WR

Part No EEE-1VA220WR
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 35V SMD / 22 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Product Status Not For New Designs
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 1000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 36 mA @ 120 Hz
Ripple Current @ High Frequency 61.2 mA @ 10 kHz
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
Base Product Number EEE-1VA
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number EEE1VA220WR,PCE3953CT,PCE3953TR,PCE3953DKR
Standard Package 1,000
Win Source Part Number 1328536-EEE-1VA220WR
Ultra Librarian 3D Model Ultra Librarian EEE-1VA220WR CAD Model

Description

The Panasonic Electronic Components EEE-1VA220WR is an aluminum electrolytic capacitor designed for automotive applications.

  • Capacitance: 22μF
  • Tolerance: ±20%
  • Mounting Type: Surface Mount
  • Package: Radial, Can - SMD
  • Voltage Rating: 35V
  • Lifetime: 1000 hours @ 85°C
  • RoHS Compliant: Yes
  • Ripple Current (Low Frequency): 36mA @ 120Hz
  • Ripple Current (High Frequency): 61.2mA @ 100kHz
