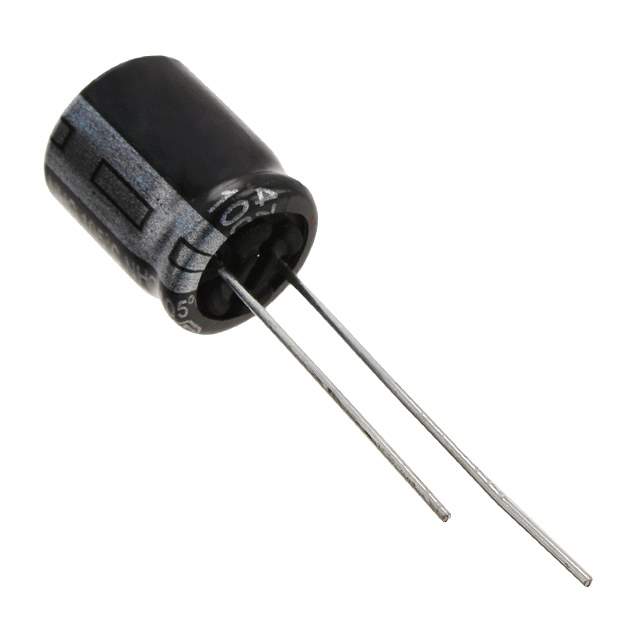

Same model may have multiple batches, images only for reference.

ECA-1JHG331

Name: ECA-1JHG331
Brand: Panasonic
SKU: 1341022
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ECA-1JHG331
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 330UF 20% 63V RADIAL / 330 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	NHG-A
Package	Bulk
Capacitance	330 µF
Tolerance	±20%
Voltage - Rated	63 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	510 mA @ 120 Hz
Ripple Current @ High Frequency	765 mA @ 100 kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Base Product Number	ECA-1JH
Standard Package	200
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1341022-ECA-1JHG331
Ultra Librarian 3D Model	Ultra Librarian ECA-1JHG331 CAD Model

Description

The Panasonic Electronic Components 1341022-ECA-1JHG331 is a 330 µF aluminum electrolytic capacitor with a voltage rating of 63 V and a tolerance of ±20%.

Capacitance: 330 µF
Voltage Rating: 63 V
Tolerance: ±20%
Ripple Current @ Low Frequency: 510 mA @ 120 Hz
Ripple Current @ High Frequency: 765 mA @ 100 kHz
Mounting: Radial, Can
Diameter: 0.394" (10.00mm)
Height: 0.866" (22.00mm)
Temperature Range: -55°C ~ 105°C
Lifetime: 2000 Hrs @ 105°C
MSL Level: Not Applicable
REACH Status: Unaffected
