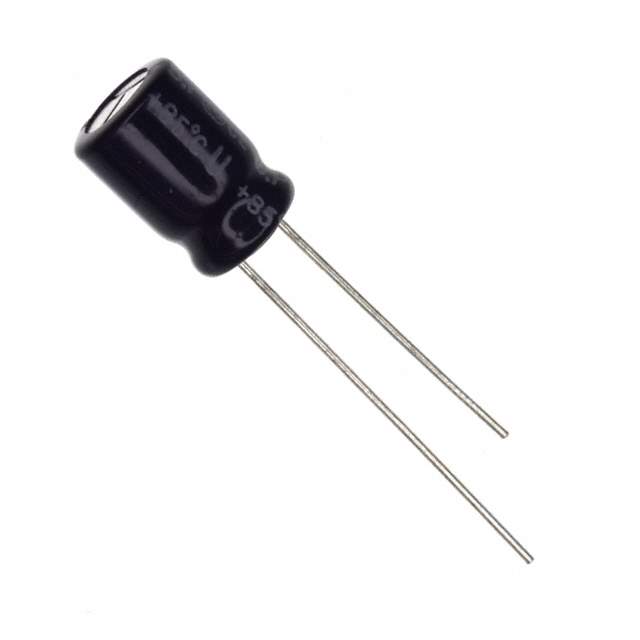

Same model may have multiple batches, images only for reference.

ECE-A1VN330U

Name: ECE-A1VN330U
Brand: Panasonic
SKU: 1346339
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ECE-A1VN330U
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 33UF 20% 35V RADIAL / 33 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	SU
Package	Bulk
Capacitance	33 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Bi-Polar
Applications	General Purpose
Ripple Current @ Low Frequency	100 mA @ 120 Hz
Ripple Current @ High Frequency	170 mA @ 10 kHz
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.453" (11.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Base Product Number	ECE-A1
Standard Package	200
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1346339-ECE-A1VN330U
Ultra Librarian 3D Model	Ultra Librarian ECE-A1VN330U CAD Model

Description

The Panasonic Electronic Components ECE-A1VN330U is an aluminum electrolytic capacitor that belongs to the SU series.

Series: SU
Mounting Type: Through Hole, Radial Can
Capacitance: 33µF
Voltage Rating: 35V
Tolerance: ±20%
Ripple Current: 100mA @ 120Hz and 170mA @ 10kHz
Diameter: 0.315” (8.00mm)
Seated Height: 0.453” (11.50mm)
Lifetime: 2000 Hours @ 85°C
Polarization: Bi-Polar
Application: General Purpose
Lead Spacing: 0.138” (3.50mm)
