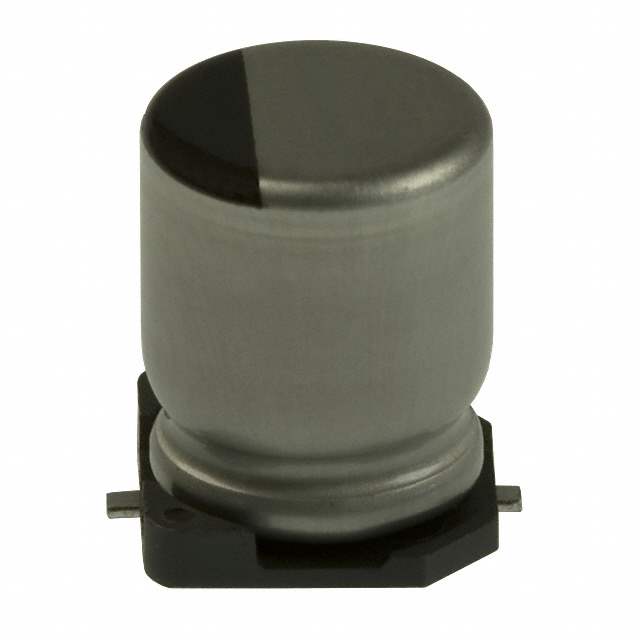

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 470μF
Tolerance ±20%
Voltage Rating 16V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C to 85°C
Polarization Polar
Applications General Purpose
Ripple Current - Low Frequency 350mA @ 120Hz
Ripple Current - High Frequency 595mA @ 10kHz
Height - Seated (Max) 0.402" (10.20mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Dimension Radial, Can - SMD
Win Source Part Number 129844-EEE-1CA471UP
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian EEE-1CA471UP CAD Model

Description

Product Overview

The EEE-1CA471UP aluminum electrolytic capacitor is engineered for precision and high performance. Its design ensures stability and long life, making it a valuable component in critical applications.

Features and Benefits

  • Exceptional heat resistance
  • High capacitance in a small package
  • Low impedance and ESR
  • Prolonged operational life

Applications

  • Automotive electronics
  • Power supply circuits
  • Lighting systems
  • Electronic ballast
