Same model may have multiple batches, images only for reference.

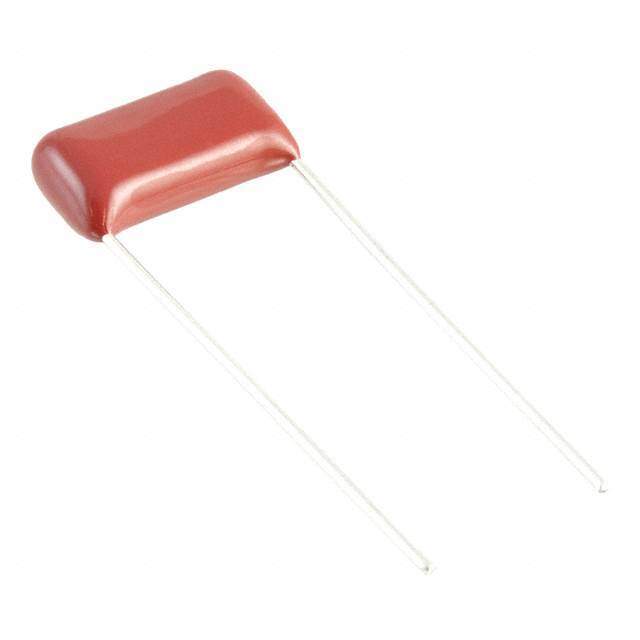

ECW-FD2W564K Real Image
Same model may have multiple batches, images only for reference.

ECW-FD2W564K

Part No ECW-FD2W564K
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 0.56UF 10% 450VDC RAD / 0.56 µF Film Capacitor 84V 450V Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr Panasonic Electronic Components
Series ECW-F(D)
Package Bulk
Capacitance 0.56 µF
Tolerance ±10%
Voltage Rating - AC 84V
Voltage Rating - DC 450V
Dielectric Material Polypropylene (PP) , Metallized
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.689" L x 0.244" W (17.50mm x 6.20mm)
Height - Seated (Max) 0.370" (9.40mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT
Base Product Number ECW-FD
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Win Source Part Number 1350810-ECW-FD2W564K
Ultra Librarian 3D Model Ultra Librarian ECW-FD2W564K CAD Model

Description

The ECW-FD2W564K is a film capacitor from Panasonic Electronic Components.

  • Capacitance: 0.56 µF
  • Voltage Rating (AC): 450V
  • Voltage Rating (DC): 84V
  • Package: Radial
  • Mounting Type: Through Hole
  • Termination: PC Pins
  • Package Dimensions: 0.689" L x 0.244" W (17.50mm x 6.20mm)
  • Application: EMI/RFI Suppression, High Frequency, Switching, High Pulse DV/DT
