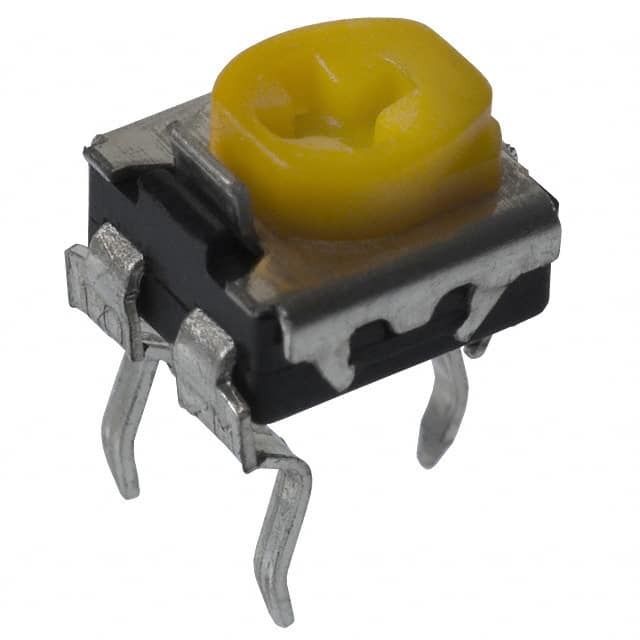

EVN-D8AA03B25
Same model may have multiple batches, images only for reference.

EVN-D8AA03B25

Part No EVN-D8AA03B25
Manufacturer Panasonic
Catalog Trimmer Potentiometers
Description TRIMMER 200K OHM 0.1W PC PIN TOP / 200 kOhms 0.1W, 1/10W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment
Datasheet
EVN-D8AA03B25 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Panasonic
Series EVN
Package Bulk
Product Status Obsolete
Resistance 200 kOhms
Power (Watts) 0.1W, 1/10W
Tolerance ±30%
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Carbon
Mounting Type Through Hole
Termination Style PC Pins
Size / Dimension Rectangular - 0.295" x 0.252" Face (7.50mm x 6.40mm)
Standard Package 500 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 871292-EVN-D8AA03B25
Ultra Librarian 3D Model Ultra Librarian EVN-D8AA03B25 CAD Model

Description

The 871292-EVN-D8AA03B25 is a trimmer potentiometer from the EVN series.

  • Adjustment Type: Top
  • Resistance: 200 kOhms
  • Tolerance: ±30%
  • Power Rating: 0.1W (1/10W)
  • Turns: Single
  • Resistive Material: Carbon
  • Package: Rectangular
  • Pins: PC pins
  • Manufacturer: Panasonic
