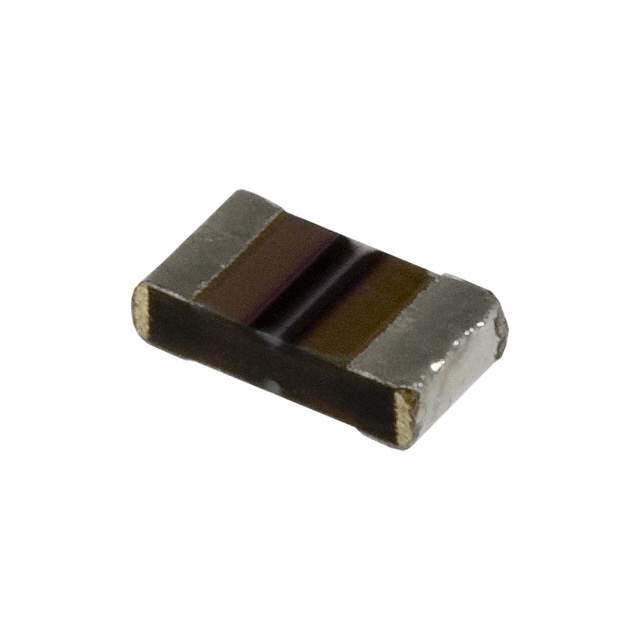

ECP-U1C154MA5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 0.15μF
Tolerance ±20%
Voltage Rating - DC 16V
Dielectric Material Acrylic, Metallized - Stacked
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.039" (1.00mm)
Termination Solder Pads
Applications EMI, RFI Suppression
Features Low ESR
Win Source Part Number 129184-ECP-U1C154MA5
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian ECP-U1C154MA5 CAD Model

Description

The ECP-U1C154MA5 capacitor stands out for its high-capacity storage and reliability, making it essential for both analog and digital circuits. It caters to demanding applications that require precise capacitance.

Features and Benefits

  • Capacitance Value: Offers a substantial 0.15uF, crucial for various stabilization tasks.
  • Voltage Rating: Rated at 16V, suitable for most electronic needs.
  • Operating Temperature: Performs optimally between -55°C to 125°C.
  • Space Optimization: Its compact design helps in efficient space management in circuit designs.

Applications & Projects

  • Computer Systems
  • Audio Equipment
  • RF Applications
  • Filter Circuits
