Products specifications

Manufacturer Panasonic
Win Source Part Number 1170643-ECHU1683GC9
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECHU1683GC9 CAD Model

Description

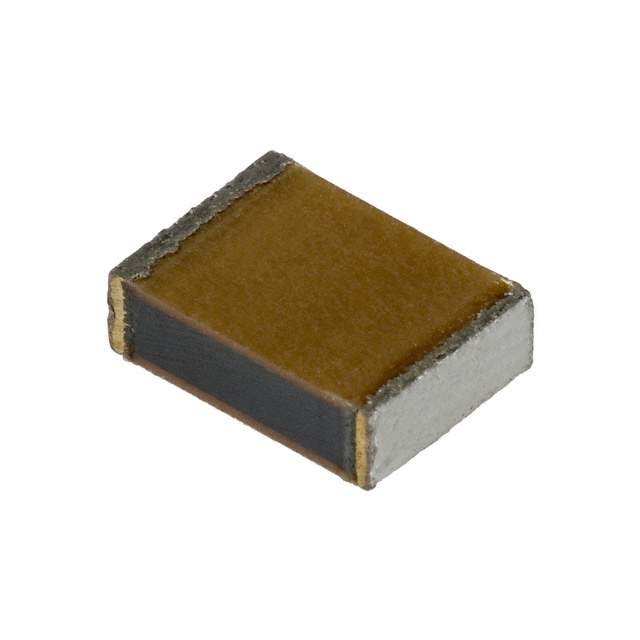

The ECHU1683GC9 is a metallized film capacitor manufactured by Panasonic. It belongs to the ECHU series, which is known for its high reliability, low ESR (Equivalent Series Resistance), and excellent high-frequency characteristics. These capacitors are designed for a wide range of applications where stable performance and long life are crucial.

Applications:

  • DC filtering in power supplies
  • Snubber circuits
  • Resonant circuits
  • Audio equipment
  • Lighting ballasts
  • Industrial equipment
  • Consumer electronics
  • High-frequency circuits
  • Noise suppression

Features:

  • Capacitance: 0.068 µF (Microfarads)
  • Voltage Rating: 450 VDC (Volts Direct Current)
  • Tolerance: ±2% capacitance tolerance
  • Construction: Metallized polypropylene film
  • Low ESR: Low Equivalent Series Resistance for reduced losses and improved performance at high frequencies.
  • High Reliability: Designed for long-term stability and reliability.
  • RoHS Compliant: Compliant with RoHS standards for environmental safety.
  • Operating Temperature: Wide operating temperature range.

Benefits:

  • Stable Performance: Metallized film construction provides stable capacitance over temperature and frequency.
  • Low Losses: Low ESR minimizes power losses and improves circuit efficiency.
  • High Reliability: Ensures long-term performance and reduces the risk of failure.
  • Versatile: Suitable for a wide range of applications due to its excellent electrical characteristics.
  • Compact Size: Small size allows for use in space-constrained applications.

Additional Details:

The ECHU1683GC9 capacitor's polypropylene film provides excellent insulation and electrical properties, contributing to its high voltage rating and reliability. Its low ESR characteristic is particularly important in high-frequency applications where minimizing losses is crucial. This capacitor is commonly used in snubber circuits to protect switching devices from voltage transients. It also finds applications in audio equipment where its stable capacitance ensures accurate signal reproduction. The capacitor is designed to withstand harsh environmental conditions and provides excellent long-term stability. Consult the datasheet for detailed electrical characteristics, temperature performance, and mechanical dimensions.
