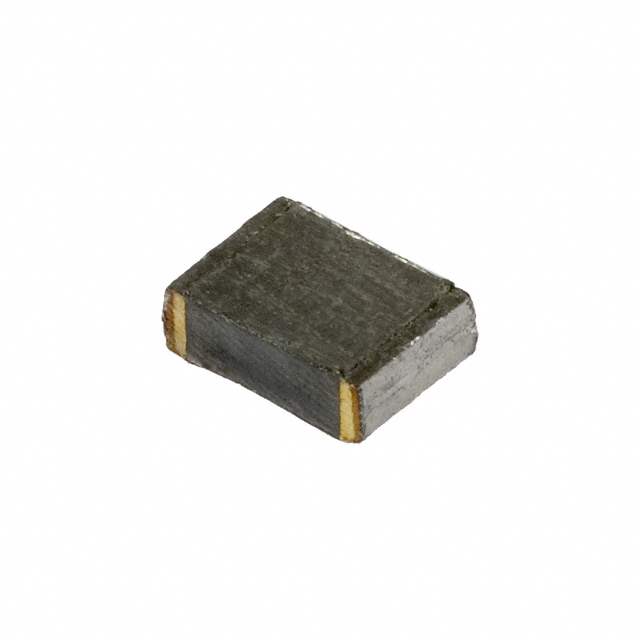

ECH-U1H183JB5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 0.018μF
Tolerance ±5%
Voltage Rating - DC 50V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.063" (1.60mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 000890-ECH-U1H183JB5
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECH-U1H183JB5 CAD Model

Description

Product Overview

The ECH-U1H183JB5 capacitor is designed for high-efficiency performance in various electronic circuits. Its advanced construction provides excellent electrical characteristics.

Features and Benefits

  • Superior capacitance stability
  • Low equivalent series resistance (ESR)
  • Extended operational lifecycle
  • Temperature resilience

Applications

  • Switch-mode power supplies
  • Microcontroller decoupling
  • Energy storage devices
  • Automotive electronics

With its enhanced features, this capacitor is engineered to support high-demand applications effectively.
