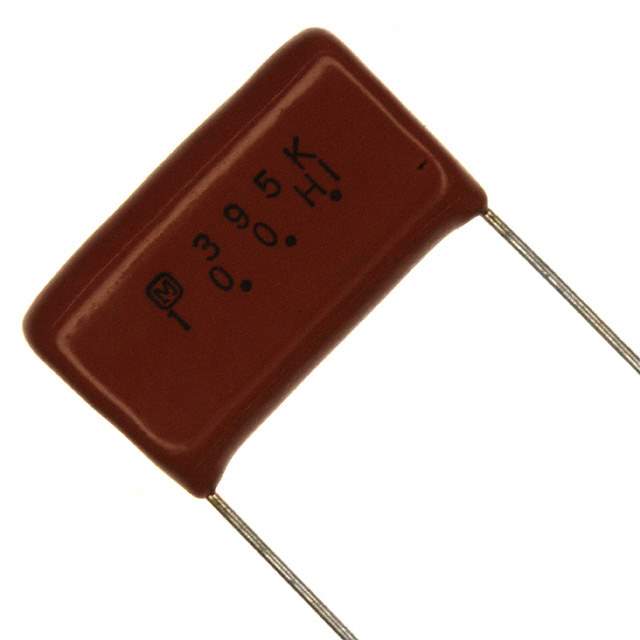

ECQ-E1475JF Real Image
Same model may have multiple batches, images only for reference.

ECQ-E1475JF

Part No ECQ-E1475JF
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 4.7UF 5% 100VDC RADIAL / 4.7 µF Film Capacitor 63V 100V Polyester, Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Panasonic Electronic Components
Series ECQ-E(F)
Package Bulk
Capacitance 4.7 µF
Tolerance ±5%
Voltage Rating - AC 63V
Voltage Rating - DC 100V
Dielectric Material Polyester, Metallized
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Dimension 1.024" L x 0.295" W (26.00mm x 7.50mm)
Height - Seated (Max) 0.709" (18.00mm)
Termination PC Pins
Lead Spacing 0.886" (22.50mm)
Applications General Purpose
Base Product Number ECQ-E1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Names ECQE1475JF,P14624
Standard Package 100
Win Source Part Number 1025469-ECQ-E1475JF
Ultra Librarian 3D Model Ultra Librarian ECQ-E1475JF CAD Model

Description

The ECQ-E(F) series film capacitor from Panasonic Electronic Components is a metallized polyester capacitor with a capacitance of 4.7 μF and a tolerance of ±5%.

  • Voltage Rating: 63V AC and 100V DC
  • Mounting Type: Through-Hole
  • Package/Case: Radial
  • Dimensions: 1.024" L x 0.295" W (26.00mm x 7.50mm)
  • Height (Seated): 0.709" (18.00mm)
  • Lead Spacing: 0.886" (22.50mm)
  • Operating Temperature: -40°C to 105°C
  • Packaging: Bulk
  • Standard Package: 100
