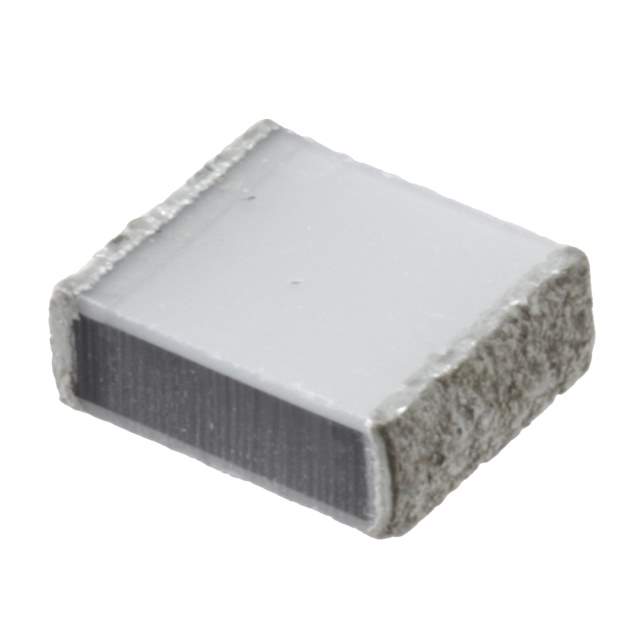

LDEDD3680JA5N00 Real Image
Same model may have multiple batches, images only for reference.

LDEDD3680JA5N00

Part No LDEDD3680JA5N00
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.68UF 5% 63VDC 2220
Datasheet
LDEDD3680JA5N00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Reel - TR
Status Active
Capacitance 0.68μF
Tolerance ±5%
Voltage Rating - AC 40V
Voltage Rating - DC 63V
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.236" L x 0.197" W (6.00mm x 5.00mm)
Height - Seated (Max) 0.130" (3.30mm)
Termination Solder Pads
Applications General Purpose
Features High Temperature
Win Source Part Number 122426-LDEDD3680JA5N00
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2,250
Ultra Librarian 3D Model Ultra Librarian LDEDD3680JA5N00 CAD Model

Description

The Kemet 185378 is a general-purpose capacitor that has a capacitance of 0.68μF with a tolerance of ±5%.

  • Capacitance: 0.68μF
  • Tolerance: ±5%
  • Voltage Rating - AC: 40V
  • Voltage Rating - DC: 63V
  • Application: high-temperature
  • Height: 0.130" (3.30mm)
  • Mounting Type: surface mount technology (SMT)
  • Termination: solder pads
  • Packaging: reel-tr
  • Dimension: 0.236" L x 0.197" W (6.00mm x 5.00mm)
  • Product Status: active
  • Popularity: medium
  • Supply and Demand Status: balanced
  • Quantity per package: 2,250
