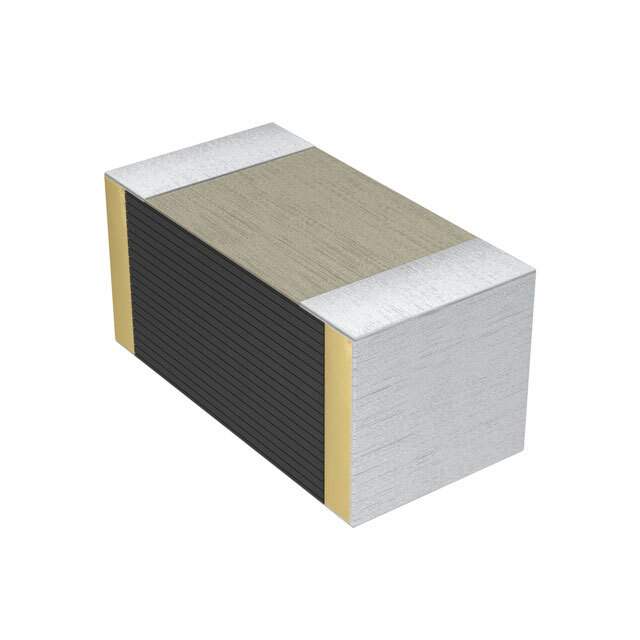

ECH-U1C393JX5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 0.039μF
Tolerance ±5%
Voltage Rating - DC 16V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.067" (1.70mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 108477-ECH-U1C393JX5
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian ECH-U1C393JX5 CAD Model

Description

Overview

The ECH-U1C393JX5 is a high-performance multilayer ceramic capacitor, renowned for its reliability in electronic circuits. Ideal for surface-mount applications, it offers stable performance under diverse conditions.

Features and Benefits

  • Capacitance: High capacitance value to support various electronic applications.
  • Voltage Rating: Offers reliability with a suitable voltage tolerance.
  • Size: Compact design to fit different circuit boards.

Applications

  • Power supply circuits
  • Signal coupling and decoupling
  • Consumer electronics

This capacitor is a versatile choice for both hobbyists and professionals aiming to enhance their electronic projects.
