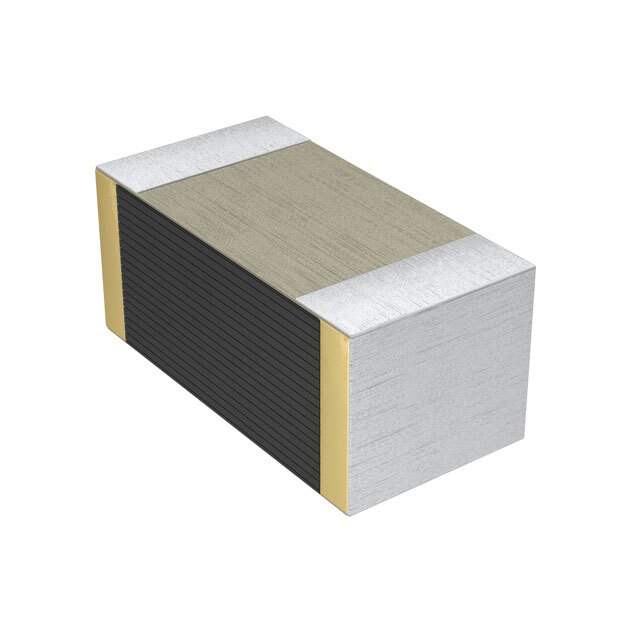

Products specifications

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 1800pF
Tolerance ±2%
Voltage Rating - DC 16V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.033" (0.85mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 111901-ECH-U1C182GX5
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian ECH-U1C182GX5 CAD Model

Description

Description

The ECH-U1C182GX5 is part of a series of capacitors known for their high reliability and performance. This component is specifically designed to cater to the rigorous demands of industrial and commercial applications.

Features and Benefits

  • Highly resistant to environmental stress
  • Uniform capacitance across varied conditions
  • Compact size conducive for dense PCB layouts
  • Low-loss characteristics aid in energy conservation

Applications

  • Industrial control systems
  • Data acquisition systems
  • Embedded computing devices
  • Instrumentation equipment

The ECH-U1C182GX5 is ideal for projects requiring compact but powerful components.
