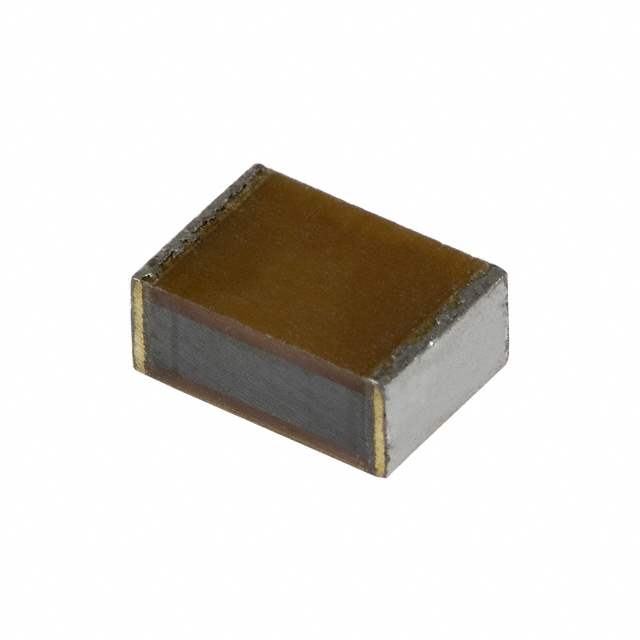

ECH-U1104JC9 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 0.1μF
Tolerance ±5%
Voltage Rating - DC 100V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 105°C
Mounting SMD (SMT)
Dimension 0.280" L x 0.197" W (7.10mm x 5.00mm)
Height - Seated (Max) 0.130" (3.30mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 128609-ECH-U1104JC9
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1,500
Ultra Librarian 3D Model Ultra Librarian ECH-U1104JC9 CAD Model

Description

Description:

The ECH-U1104JC9 capacitor provides excellent capacitance stability and reliability, making it perfect for use in precision electronic circuits. Its advanced materials and construction process ensure long-term performance and efficiency.

Features & Benefits:

  • Exceptional thermal stability.
  • Superior performance in high-frequency applications.
  • Long life span due to high-quality dielectric materials.
  • Compact SMD package for efficient PCB layout.

Applications:

  • Automotive electronics
  • Signal processing circuits
  • Medical devices
  • Audio equipment
