Same model may have multiple batches, images only for reference.

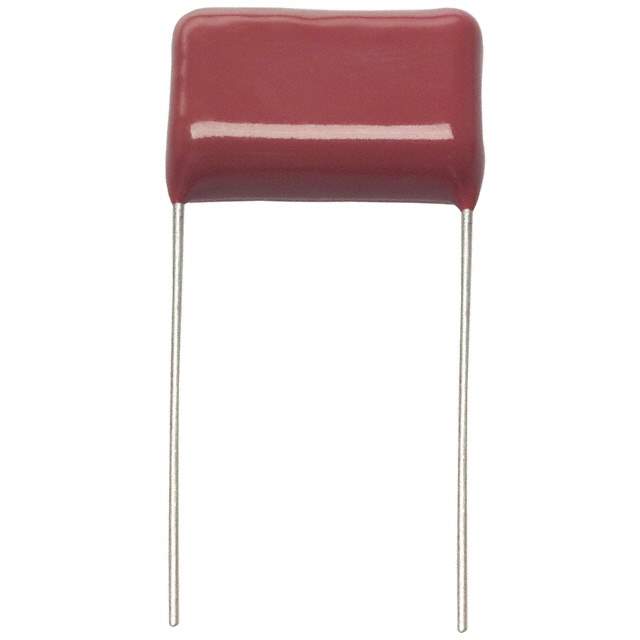

ECH-A18205JX Real Image
Same model may have multiple batches, images only for reference.

ECH-A18205JX

Part No ECH-A18205JX
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 2UF 5% 180VAC RADIAL
Datasheet
ECH-A18205JX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Series ECHAX
Packaging Bulk
Part Status Obsolete(EOL)
Capacitance 2μF
Tolerance ±5%
Voltage Rating - AC 180V
Dielectric Material Polyester, Polyethylene, Metallized
Operating Temperature Range -25°C ~ 70°C
Mounting Style Through Hole
Package Radial
Dimension 1.043" L x 0.453" W (26.50mm x 11.50mm)
Height - Seated (Maximum) 0.906" (23.00mm)
Termination PC Pins
Lead Spacing 0.886" (22.50mm)
Applications Motor Run
Win Source Part Number 766658-ECH-A18205JX
Popularity Medium
Supply and Demand Status Limited
Family Name ECHAX
Introduction Date March 08, 2000
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian ECH-A18205JX CAD Model

Description

The Panasonic Electronic Components Capacitor is a high-quality component that is designed to provide excellent performance and reliability.

  • Win Source Part Number: 766658-ECH-A18205JX
  • Applications: Motor Run Systems
  • Size: Compact
  • Capacitance: High
  • Voltage: High
