Manufacturer Cree/Wolfspeed
Packaging Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Maximum) 1200V
Current - Average Rectified (Io) (per Diode) 21.5A
Voltage - Forward (Vf) (Maximum) at If 1.8V at 15A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0ns
Current - Reverse Leakage at Vr 200μA at 1200V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Style Through Hole
Manufacturer Package TO-247-3
Supplier Device Package TO-247-3
Manufacturer Pack Quantity 30
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809912-C4D30120D
Ultra Librarian 3D Model Ultra Librarian C4D30120D CAD Model

Description

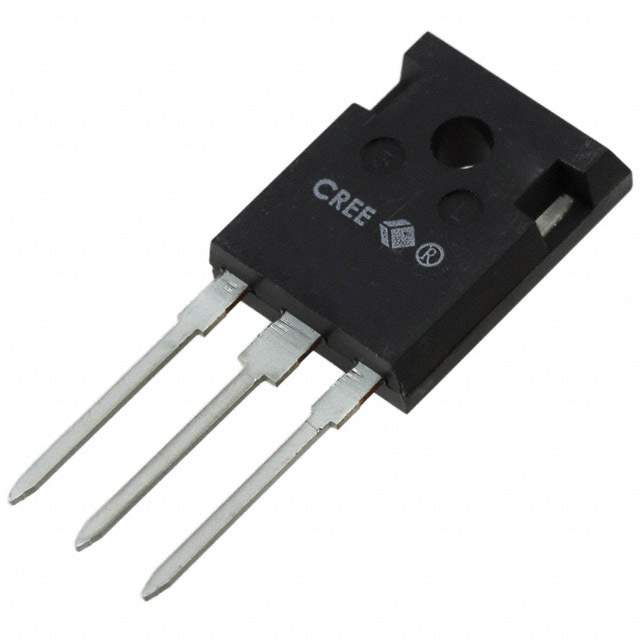

The Cree/Wolfspeed C4D30120D is a high-quality diode that is perfect for use in a variety of applications.

  • Mounting: Through-hole
  • Voltage Rating: 1200V
  • Current Rating: 21.5A
  • Recovery Time: 0 ns
  • Diode Configuration: 1 pair common cathode
  • Package: TO-247-3
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 30
  • Voltage Forward: 1.8V @ 15A
  • Reverse Leakage Current: 200 microamps @ 1200V
