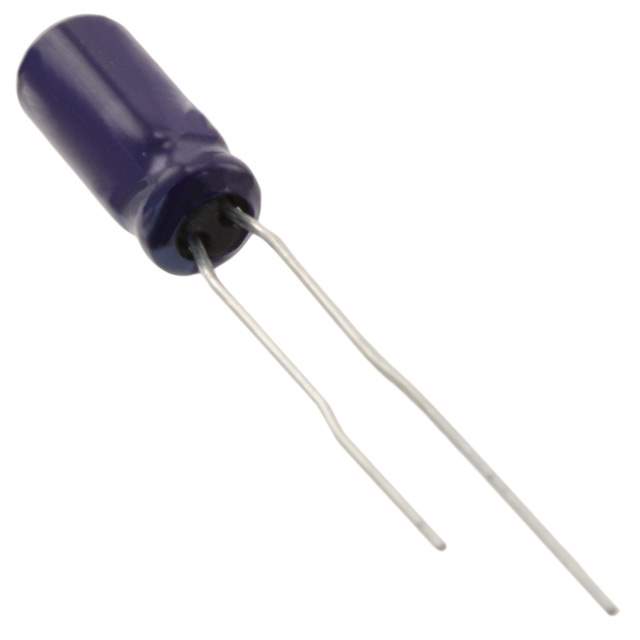

ECA-1HM220 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series M-A
Package Bulk
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 100 mA @ 120 Hz
Ripple Current @ High Frequency 170 mA @ 10 kHz
Lead Spacing 0.079" (2.00mm)
Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number ECA-1HM
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names ECA1HM220,P5179
Standard Package 200
Win Source Part Number 996514-ECA-1HM220
Ultra Librarian 3D Model Ultra Librarian ECA-1HM220 CAD Model

Description

The ECA-1HM220 is an aluminum electrolytic capacitor from the M-A series of capacitors.

  • Series: M-A
  • Capacitance: 22µF
  • Tolerance: ±20%
  • Voltage Rating: 50V
  • ESR: Not specified
  • Lifetime @ 85°C: 2000 hours
  • Polarization: Polar
  • Mounting Type: Through-Hole
  • Package: Radial, Can
